Garage Conversion Electrical Requirements in San Jose

By Minh Tran

Electrical work accounts for 30 to 40 percent of total project costs on most garage conversions our team handles in San Jose — a figure that catches nearly everyone off guard. The assumption that swapping a few outlets and adding a breaker will satisfy inspectors is one of the most expensive misconceptions we encounter. Meeting garage conversion electrical requirements in California means navigating the National Electrical Code, the California Electrical Code, and Title 24 energy standards simultaneously. Our team at 9 Builders has guided hundreds of projects through this process via our garage conversion services, and the electrical phase consistently determines whether a project stays on schedule or stalls at inspection.

San Jose enforces the California Building Code, the California Electrical Code, and Title 24 energy compliance on every conversion project. Our team treats the electrical scope not as an afterthought but as a primary planning driver — alongside plumbing requirements — because permit delays in either trade ripple across the entire build schedule. Planning both concurrently typically saves two to three weeks compared to sequential handling.

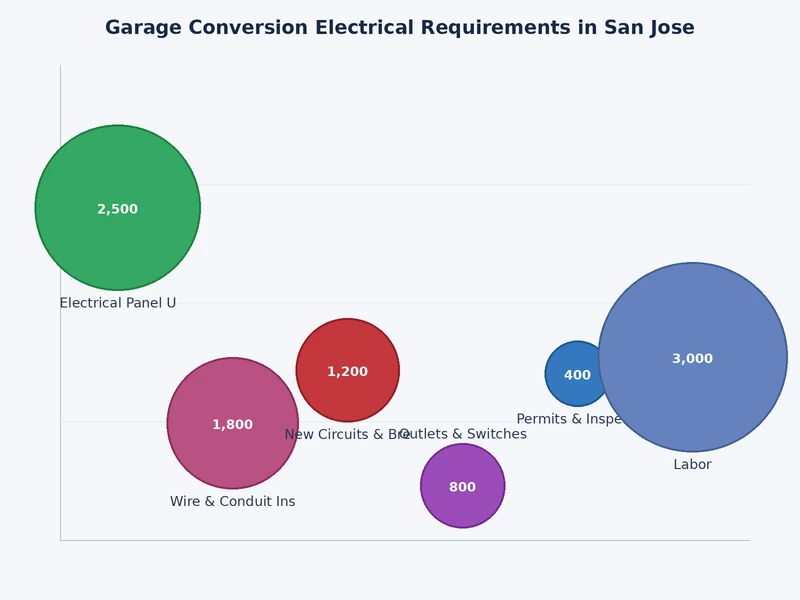

For anyone exploring the financial side before diving into technical details, our breakdown of garage conversion costs in San Jose provides a useful starting point. The electrical scope alone can range from $3,500 for minimal upgrades to $18,000 or more when a full panel replacement and new subpanel are required.

Step-by-Step: Meeting Garage Conversion Electrical Requirements in San Jose

Our team follows a consistent sequence on every project. Skipping steps — even with good intentions — is how projects end up at failed inspections or costly mid-project rework.

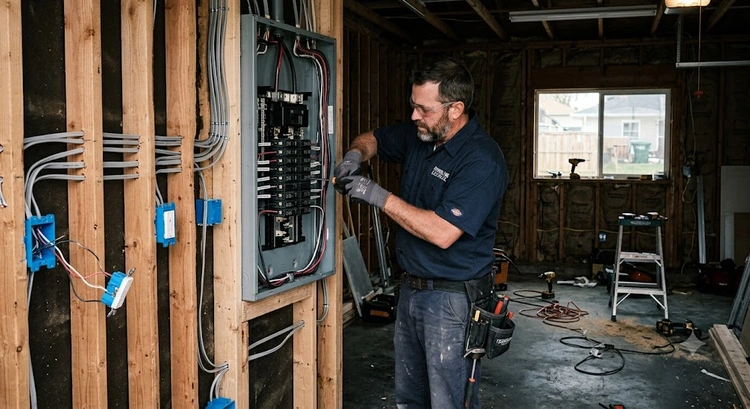

Step 1 — Evaluate the Existing Panel

Most San Jose garages are served by 100-amp or 150-amp panels sized for the home's original load. Converting to habitable space adds significant continuous loads: heating, cooling, lighting, receptacles, and potentially a kitchen or bathroom. Our electricians always start with the panel.

• Inspect the main panel for remaining capacity and age
• Check whether the panel brand is on CPSC recall lists — Federal Pacific and Zinsco panels require full replacement
• Confirm the panel supports arc-fault (AFCI) and ground-fault (GFCI) breaker slots
• Determine whether a subpanel in the converted space is more practical than running all circuits from the main

Step 2 — Map Circuit Requirements

California's Title 24 and the NEC both prescribe minimum circuit layouts. Our team builds a circuit schedule before any wire is pulled.

• Lighting circuits: minimum one 15-amp circuit; Title 24 requires LED fixtures or equivalent efficacy
• General receptacles: 20-amp circuits, spaced per NEC 210.52 — no point on any wall more than 6 feet from an outlet
• Kitchen (if included): two dedicated 20-amp small-appliance circuits plus a separate 20-amp circuit for the refrigerator
• Bathroom (if included): dedicated 20-amp GFCI-protected circuit
• HVAC: dedicated circuit sized per equipment nameplate; most mini-splits above 9,000 BTU require a 240V 20- or 30-amp circuit
• EV charging: many ADU conversions now include a 240V 50-amp circuit for future EV readiness — our team covers the full scope in our guide to EV charging station installation for Bay Area garage conversions

Step 3 — Pull Permits and Schedule Inspections

San Jose's Department of Planning, Building and Code Enforcement requires a separate electrical permit alongside the building permit. Our team submits load calculations and a single-line diagram as part of every package.

1. Submit electrical plans concurrently with building plans for combined review
2. Rough-in inspection occurs after wiring is in place but before walls close
3. Final inspection confirms all devices, panels, and circuit labeling are complete
4. Title 24 energy compliance verification occurs at the final inspection stage

Pro insight: Our team always requests a pre-application meeting with San Jose's Building Department on ADU projects — it catches plan-check comments before they become rejection letters and add weeks to the schedule.

Panel and Wiring Options Compared

Selecting the right panel configuration is one of the most consequential early decisions in a garage conversion. Our team evaluates four common scenarios, each with different cost, complexity, and long-term flexibility profiles.

When a Subpanel Makes Sense

A subpanel in the converted space is the right call when the run from the main panel exceeds 50 feet, or when the main panel has limited slots but adequate amperage. It provides clean local circuit management and reduces voltage drop on long runs. Our team typically installs a 60- or 100-amp subpanel and lands all conversion circuits there.

When a Full Service Upgrade Is Unavoidable

Homes with 100-amp main service converting to a full ADU nearly always require a utility-coordinated 200-amp upgrade. This involves scheduling a PG&E disconnect, replacing the meter socket and service entrance cable, and often upgrading the weather head. Our team manages that utility coordination directly. For anyone comparing this path to building new, our guide on garage conversion vs. room addition in the Bay Area breaks down how electrical scopes differ between the two approaches.

Common Misconceptions About Garage Conversion Electrical Work

Our team fields the same misconceptions on nearly every project. Addressing them early prevents expensive course corrections mid-build.

Myth 1: The Existing Garage Wiring Can Stay

Garage wiring is typically 14-gauge on ungrounded 15-amp circuits with no AFCI protection. None of that meets code for habitable space. All wiring in the converted area must be replaced or verified to current standards. Our inspectors have found aluminum branch circuit wiring in some 1970s Bay Area garages — a situation requiring full replacement or approved connectors, not a pass-through.

Myth 2: A Licensed Handyman Can Do the Work

California law requires a C-10 Electrical Contractor license for any work requiring a permit. Unlicensed electrical work can void homeowner's insurance, trigger city fines, and create significant liability at resale. Our team partners only with licensed, insured electricians carrying current workers' compensation coverage.

Myth 3: Permits Aren't Worth the Hassle

Unpermitted electrical work surfaces during home sales — at the worst possible time. San Jose's permit system processes complete packages in 4 to 8 weeks, and the inspection process catches installation errors before walls close. Our complete guide to garage to ADU conversion in San Jose dedicates an entire section to why permitted work protects long-term property value.

Myth 4: All Mini-Splits Run on 120V

Most ductless mini-splits above 9,000 BTU require a dedicated 240V circuit with a line-of-sight disconnect. The disconnect box must be visible and accessible from the unit per NEC 440.14. Our team always confirms equipment specs before finalizing the electrical plan — surprises at rough-in are avoidable.

Electrical Needs by Garage Conversion Type

The garage conversion electrical requirements shift significantly depending on how the space will be used. Our team scopes these projects differently based on end use from day one.

ADU / Rental Unit

A full detached garage rental unit in San Jose requires the most complete electrical scope. Expect a subpanel, dedicated kitchen circuits, bathroom GFCI circuit, HVAC circuit, and exterior lighting with vacancy sensor controls per Title 24. Separate sub-metering is increasingly requested by owners who want to track energy use per unit and split utility billing with tenants.

Home Office or Studio

A home office conversion typically needs:

• Multiple 20-amp general-purpose circuits to support monitors, workstations, and peripherals
• A dedicated circuit for any server rack or network equipment
• Data conduit rough-in, even if IT infrastructure comes later
• Occupancy sensor or dimmer controls for lighting to satisfy Title 24

Gym or Workshop

Power tool loads are among the highest our team encounters in residential work. A table saw alone can draw 15 amps at 240V under load. Workshop conversions typically need multiple 20-amp and 30-amp 240V circuits plus a dedicated dust collector circuit. GFCI protection applies throughout because concrete slabs qualify as damp locations under the NEC.

Guest Suite Without a Kitchen

A lighter scope applies — but still requires full NEC 210.52 receptacle spacing, AFCI protection on all circuits, a dedicated bath circuit, and Title 24 lighting compliance. Our team often recommends adding a 240V rough-in circuit during initial work for future kitchen or HVAC flexibility. The marginal cost at rough-in is minimal compared to retrofitting a finished wall later.

Maintaining the Electrical System in a Converted Garage

A properly installed system requires relatively little ongoing attention. That said, our team recommends a consistent maintenance schedule, particularly in the Bay Area where coastal humidity and temperature swings create conditions that accelerate corrosion in electrical enclosures.

Annual Checks

• Test all GFCI outlets and breakers using the "Test" button and confirm clean trip and reset
• Inspect the subpanel for corrosion, heat discoloration, or any sign of moisture intrusion
• Verify circuit labels in the subpanel remain accurate — labels fade and become outdated when loads are repurposed
• Check exterior conduit runs for UV degradation, pest intrusion, or physical damage

When to Call a Licensed Electrician

• Any breaker that trips repeatedly under normal load conditions
• Outlets or switch covers that are warm to the touch
• Flickering lights not explained by a loose bulb or lamp connection
• Visible scorching or a burning smell near any device, outlet, or panel

Our Bay Area ADU maintenance guide covers the full picture across mechanical, plumbing, and electrical systems — a resource our team references when setting post-conversion maintenance schedules with clients. Electrical issues caught early rarely escalate; deferred maintenance is where real costs accumulate.

Documentation to Retain

Our team advises keeping the following on file for the life of the property:

• Approved electrical plans and permit card (or digital copy from San Jose's permit portal)
• Final electrical inspection sign-off sheet
• Subpanel single-line diagram and circuit schedule with breaker labels
• Manufacturer specs for all installed equipment — panels, mini-splits, EV chargers, and disconnect switches

Frequently Asked Questions

Key Takeaways

• Garage conversion electrical requirements in San Jose mandate AFCI protection on all branch circuits, GFCI coverage in wet areas, Title 24 lighting compliance, and properly sized dedicated circuits — existing garage wiring almost never meets these standards as-is.
• Most conversions require either a subpanel, a full 200-amp service upgrade, or both, and a licensed electrician's load calculation is the only reliable way to determine which path applies.
• Pulling proper permits protects homeowners at resale, satisfies insurance requirements, and ensures inspectors catch installation errors before walls close — skipping permits creates compounding liability.
• Planning the electrical scope alongside plumbing and mechanical during the permit phase — rather than sequentially — typically saves two to three weeks on the overall project timeline and reduces coordination costs.
