When our team inspected a 1920s bungalow in Oakland last spring, the crawl space told the whole story: short stud walls between the foundation and the first floor had rotted at the base plates and showed zero lateral bracing. One moderate tremor could have slid the entire house off its foundation. That scenario is far more common than most people realize, and it is exactly why cripple wall bracing in the Bay Area remains one of the most critical seismic upgrades for pre-1980 wood-frame homes. Combined with earthquake retrofitting, cripple wall reinforcement transforms a vulnerable structure into one that can ride out significant ground motion. Our team at 9Builders has completed hundreds of these retrofits across San Jose, Oakland, Fremont, and the broader Bay Area, and this guide distills everything we have learned into an actionable resource.

Cripple walls are the short wood-framed walls that span the gap between a concrete foundation and the first-floor framing. In many older Bay Area homes, these walls were built with minimal or no shear resistance. During an earthquake, lateral forces cause these walls to collapse, dropping the house onto its crawl space. The U.S. Geological Survey classifies the Bay Area as one of the highest seismic risk zones in the country, making this retrofit non-negotiable for anyone living in a pre-1980 wood-frame structure.

This guide covers what cripple wall bracing involves, how much it costs, how it compares to other seismic upgrades, and what separates a basic retrofit from a comprehensive one. Whether a homeowner is planning a foundation bolting project or a full structural overhaul, understanding cripple wall bracing is essential.

What Cripple Wall Failures Look Like in Bay Area Homes

Real-world failures provide the most compelling argument for cripple wall bracing. Our team has documented dozens of cases across the Bay Area where unbraced cripple walls led to catastrophic structural displacement, and the patterns are remarkably consistent.

Lessons from Loma Prieta and Recent Seismic Events

The 1989 Loma Prieta earthquake caused over 12,000 homes to shift off their foundations in the Bay Area. The majority shared a single characteristic: unbraced cripple walls under two feet tall. Key observations from post-earthquake assessments include:

• Homes with cripple walls taller than 14 inches experienced disproportionately higher displacement rates
• Corner lots and hillside properties suffered the worst damage due to asymmetric lateral loading
• Houses with partial bracing (one or two walls only) still experienced significant racking on the unbraced sides
• Post-1960 homes with plywood subfloor sheathing performed marginally better than those with diagonal board sheathing

More recent seismic events, including the 2014 South Napa earthquake, reinforced these findings. Properties that had undergone proper cripple wall bracing sustained minimal to no structural damage, even at peak ground accelerations exceeding 0.4g.

Common Damage Patterns We Encounter

During our advisory consultations, we regularly identify these pre-failure warning signs:

• Diagonal cracking at cripple wall corners visible from the crawl space
• Separation between the mudsill and the top of the foundation stem wall
• Moisture-damaged base plates with reduced nail holding capacity
• Previous amateur repairs using inadequate materials (drywall screws, OSB instead of structural plywood)

Immediate Steps for Protecting an Unbraced Home

Crawl Space Self-Inspection Checklist

Before commissioning a full engineering assessment, most homeowners can gather critical information with a basic crawl space inspection. Our team recommends checking the following:

1. Measure cripple wall height at each corner and at the midpoint of each wall — note any variation exceeding two inches
2. Photograph the connection between the mudsill and the foundation, looking for existing anchor bolts or their absence
3. Check for any existing plywood or bracing material on the cripple wall studs
4. Document signs of moisture intrusion, pest damage, or wood rot at the base plates
5. Note the stud spacing (typically 16 or 24 inches on center in Bay Area homes)
6. Identify any utility penetrations (plumbing, electrical, HVAC) that will affect bracing layout

Pro Insight: If the crawl space has less than 18 inches of clearance, conventional bracing installation becomes significantly more labor-intensive — factor in 30–50% additional labor costs when budgeting.

Temporary Stabilization Measures

For homes awaiting a full retrofit, several temporary measures can reduce immediate risk:

• Diagonal bracing with 2×4 lumber — temporary knee braces at 45 degrees from the mudsill to the floor joists
• Securing water heaters, gas lines, and heavy appliances to reduce secondary hazards
• Addressing any active moisture or pest issues that are weakening existing framing members
• Ensuring crawl space ventilation meets current code to prevent further deterioration

These are stopgaps, not solutions. Temporary bracing does not meet building permit requirements and will not satisfy an engineering inspection.

Cripple Wall Bracing Bay Area: Full Cost Breakdown

Primary Cost Factors

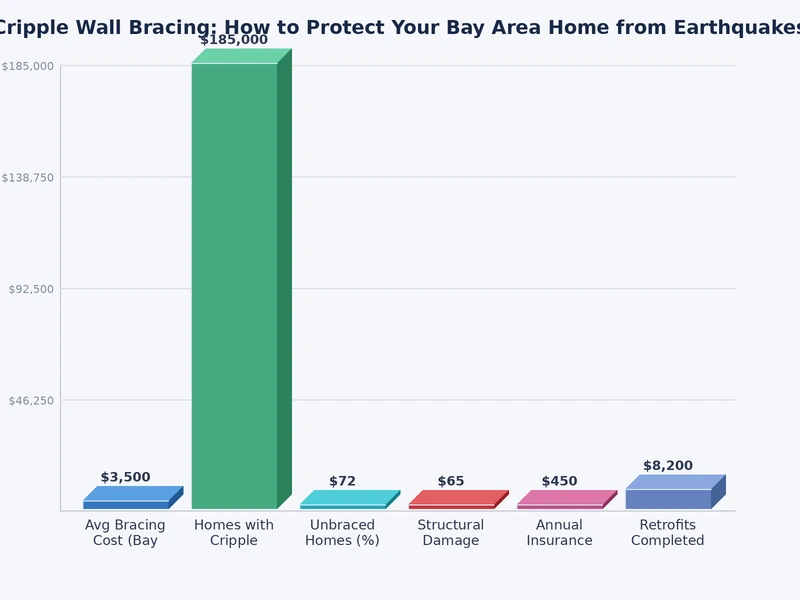

Cripple wall bracing costs in the Bay Area vary significantly based on home size, crawl space accessibility, and the extent of ancillary work required. Here is what our project data shows:

Homes requiring both cripple wall bracing and foundation bolting should expect to land in the $8,000–$15,000 range. Properties with restricted crawl space access, extensive rot remediation, or hillside conditions can exceed $20,000. For context, a complete earthquake retrofit that includes both components is still a fraction of the cost of post-earthquake structural repair, which routinely runs $50,000–$150,000.

Financing and Incentive Programs

Several programs help offset the cost of seismic retrofitting in the Bay Area:

• Earthquake Brace + Bolt (EBB) — provides grants up to $3,000 for qualifying homes in designated ZIP codes
• FEMA Hazard Mitigation Grant Program — available post-disaster declaration, covers up to 75% of eligible costs
• Home equity lines of credit — our team has seen many homeowners bundle seismic work with other upgrades to maximize financing options
• California Residential Mitigation Program (CRMP) — administers EBB and provides contractor lists

Retrofit Methods Compared: Plywood, Steel, and Engineered Solutions

Not all cripple wall bracing methods are equal. The right choice depends on wall height, load path requirements, and budget. Here is how the three primary approaches stack up.

Side-by-Side Performance Analysis

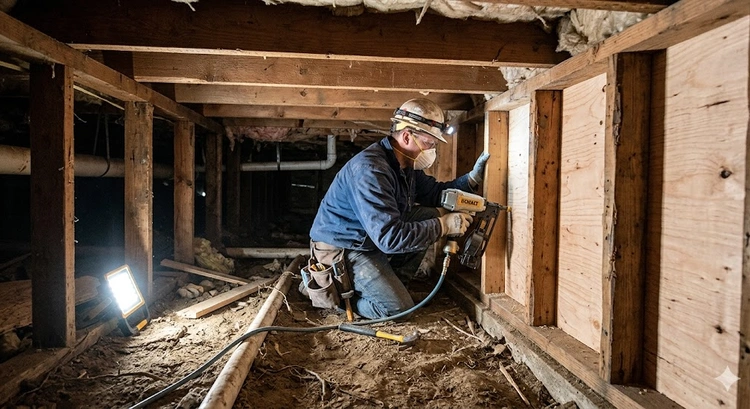

• Structural plywood sheathing — the most common method, uses 15/32" or thicker CDX plywood nailed per the prescriptive FEMA P-1100 schedule. Effective for cripple walls up to 4 feet. Lowest material cost. Our go-to for standard retrofits.
• Steel angle bracing — L-shaped steel brackets bolted between the mudsill and rim joist. Higher material cost, but faster installation in tight crawl spaces where swinging a hammer is difficult. Best suited for homes with 12–18 inch clearance.
• Engineered shear panels (e.g., Simpson Strong-Wall) — pre-engineered, narrow-profile panels that deliver high shear values in minimal wall length. Essential for homes with extensive utility penetrations or garage openings that limit available bracing wall. Premium cost but unmatched performance per linear foot.

For most Bay Area homes built before 1960, structural plywood remains the best balance of cost, performance, and code compliance. Engineered panels become necessary when the available bracing length falls below the prescriptive minimums — a situation common in homes with garage conversions where original wall framing has been modified.

Standard Retrofit vs. Comprehensive Seismic Upgrade

One of the most important decisions homeowners face is how far to go with a seismic retrofit. Our team breaks this into two tiers based on scope, cost, and risk reduction.

Standard Scope of Work

A standard cripple wall bracing retrofit follows the FEMA P-1100 (formerly FEMA P-1024) prescriptive approach:

1. Install structural plywood sheathing on all cripple wall sections per the nailing schedule
2. Add foundation anchor bolts (typically 1/2" or 5/8" epoxy-set) at prescribed spacing
3. Install framing clips connecting the cripple wall top plate to the floor framing above
4. Address any damaged or deteriorated framing members identified during installation

This standard approach addresses the most common failure mode and satisfies building permit requirements in every Bay Area jurisdiction. It is appropriate for single-story homes with cripple walls under 4 feet and regular floor plans.

Comprehensive Scope of Work

A comprehensive seismic upgrade goes beyond prescriptive cripple wall bracing to address the entire lateral load path:

• Everything in the standard scope, plus:
• Continuous load path connections from the roof diaphragm down through the wall framing to the foundation
• Soft-story reinforcement for homes with large garage openings or tuck-under parking
• Chimney bracing or removal (unreinforced masonry chimneys are a major collapse hazard)
• Subfloor diaphragm strengthening — adding plywood overlay or blocking between floor joists
• Water heater, gas line, and HVAC seismic strapping

Comprehensive retrofits are strongly recommended for two-story homes, hillside properties, homes with significant stucco or exterior damage, and any structure where the consequences of failure extend beyond the cripple wall zone. The cost premium over a standard retrofit is typically 40–60%, but the risk reduction is substantially greater.

Frequently Asked Questions

Final Thoughts

Cripple wall bracing is not a luxury upgrade — it is a fundamental structural necessity for tens of thousands of Bay Area homes sitting on unbraced crawl spaces. Our team has seen firsthand the difference between homes that ride out seismic events and those that do not, and the distinction almost always comes down to whether the load path from roof to foundation is complete. Anyone considering this work should start with a professional crawl space assessment and engineering evaluation. Reach out to our team through our advisory page to schedule a consultation and get a clear, honest assessment of what a specific property needs.
