Foundation Bolting Cost in San Jose: What Homeowners Should Expect

By Minh Tran

Nearly 70% of homes built before 1980 in San Jose lack proper foundation bolting, leaving them vulnerable to lateral movement during seismic events. Understanding foundation bolting cost in San Jose is essential for anyone considering structural upgrades, and our team has completed hundreds of these projects across the Bay Area. Foundation bolting—sometimes called sill plate anchoring—connects the wooden framing of a home directly to its concrete foundation, which is one of the most cost-effective seismic safety measures available. For homeowners exploring broader structural improvements, our advisory services can help prioritize which upgrades deliver the most protection per dollar spent.

The typical range our team quotes for foundation bolting in San Jose falls between $3,000 and $7,000 for a standard single-story home, though several factors can push that number higher. Crawl space accessibility, the number of bolts required, and whether cripple wall bracing is needed all influence the final invoice. This guide breaks down exactly what drives those costs, walks through the process step by step, and shares real numbers from projects we have completed in neighborhoods across San Jose.

Foundation bolting is closely related to full earthquake retrofitting, but it represents just one component of a comprehensive seismic upgrade—often the most affordable starting point for older homes that have never been anchored.

What Drives Foundation Bolting Cost in San Jose

Foundation bolting cost in San Jose varies significantly based on home age, foundation type, and crawl space conditions. Our team has seen quotes range from $2,500 for a small bungalow with excellent access to over $10,000 for multi-story homes with tight crawl spaces and degraded concrete.

Material and Hardware Costs

Materials typically account for 20–30% of the total project cost, with the remainder going toward labor and engineering. Here is what the hardware side looks like:

• Expansion bolts (standard): $8–$15 each, with most homes needing 25–40 bolts
• Epoxy-set bolts (for cracked or older concrete): $20–$35 each
• Simpson UFP10 retrofit plates: $12–$18 per plate when sill access is limited
• Cripple wall plywood bracing (if needed): $1,500–$3,500 additional
• Permit fees in San Jose: $300–$600 depending on scope

Labor and Access Factors

Crawl space height is the single biggest labor cost driver because technicians working in spaces under 18 inches move at roughly half the speed of those in 36-inch clearances. Homes in Willow Glen and Rose Garden often have generous crawl spaces from their era of construction, while ranch homes from the 1960s in Almaden and Cambrian tend to be tighter. The permitting process also adds cost—something we discuss in detail in our guide to Bay Area building permit costs.

Foundation bolting on homes with less than 12 inches of crawl space clearance often requires partial floor removal, which can double the labor portion of the estimate—always get a crawl space inspection before committing to a quote.

Mistakes That Inflate the Budget

Our team regularly encounters homeowners who have already spent money in ways that complicate the bolting process, and these missteps almost always increase the final cost unnecessarily.

Skipping Permits and Engineering

Some contractors offer to bolt foundations without pulling permits, which saves $300–$600 upfront but creates massive liability. Unpermitted seismic work does not count toward insurance compliance, cannot be documented for resale, and may violate FEMA's National Earthquake Hazards Reduction Program guidelines. Anyone considering unpermitted work should understand the broader consequences of building without permits in California.

Choosing the Wrong Bolt Type

Expansion bolts fail in deteriorated concrete, and our team has removed dozens of improperly installed anchors that would have pulled free during ground movement. The key mistakes include:

• Using expansion bolts in concrete with visible spalling or aggregate exposure
• Spacing bolts too far apart (code requires maximum 6 feet on center, 12 inches from each end)
• Failing to add retrofit plates where the mudsill is inaccessible from above
• Ignoring cripple walls entirely—bolting alone is insufficient when cripple walls exceed 14 inches

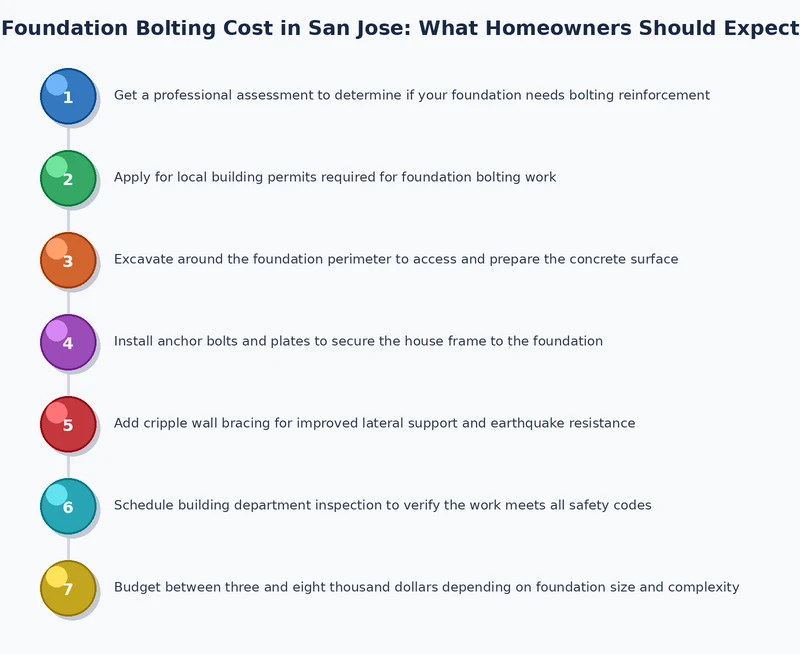

How Foundation Bolting Works Start to Finish

Structural Assessment

Every project begins with a crawl space inspection where our team evaluates concrete condition, measures clearances, identifies existing anchorage (if any), and checks for moisture damage or pest issues that need addressing first. This assessment typically takes 60–90 minutes and determines whether standard bolting is sufficient or whether supplemental cripple wall bracing and foundation plate connectors are also necessary.

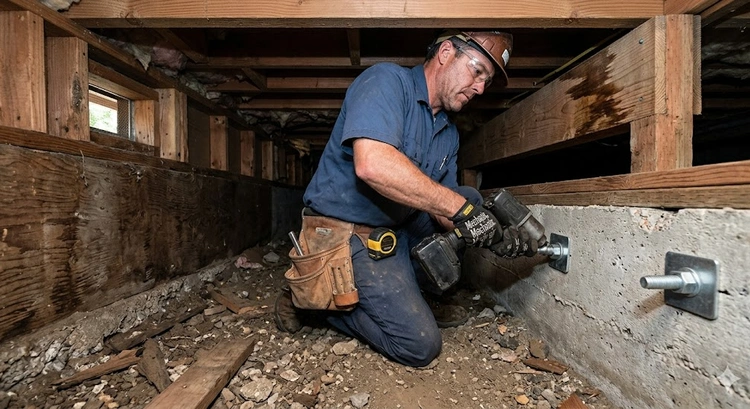

Drilling and Installation

The installation process follows a precise sequence that ensures each bolt achieves its rated holding capacity:

1. Mark bolt locations per engineering plan (6 ft max spacing, 12 in from corners and joints)
2. Drill through the mudsill and into the concrete foundation using a rotary hammer
3. Clear dust from holes with compressed air—residual dust reduces epoxy bond strength by up to 40%
4. Set bolts (expansion or epoxy depending on concrete condition) and torque to specification
5. Install steel plate washers and nuts, tightening to manufacturer specs
6. Where access prevents top-down drilling, install Simpson UFP retrofit plates from the side
7. Final inspection by city building inspector to verify spacing, torque, and bolt count

The entire installation takes one to two days for most homes, with the city inspection adding another week to the timeline. Anyone planning broader renovations should factor this into their custom home build timeline.

Tools and Materials for Professional Foundation Bolting

The equipment required for foundation bolting goes well beyond a standard homeowner's toolkit, which is one reason this is not a viable DIY project for most people.

Bolt Types Compared

Our team exclusively uses Hilti rotary hammers with dust extraction systems because concrete dust in enclosed crawl spaces creates serious respiratory hazards and reduces epoxy adhesion. The investment in professional-grade equipment is part of why licensed contractors charge what they do—and why the work holds up during actual seismic events.

Epoxy-set bolts require a minimum 24-hour cure time before loading—any contractor who torques epoxy bolts on the same day they are set is compromising the entire retrofit.

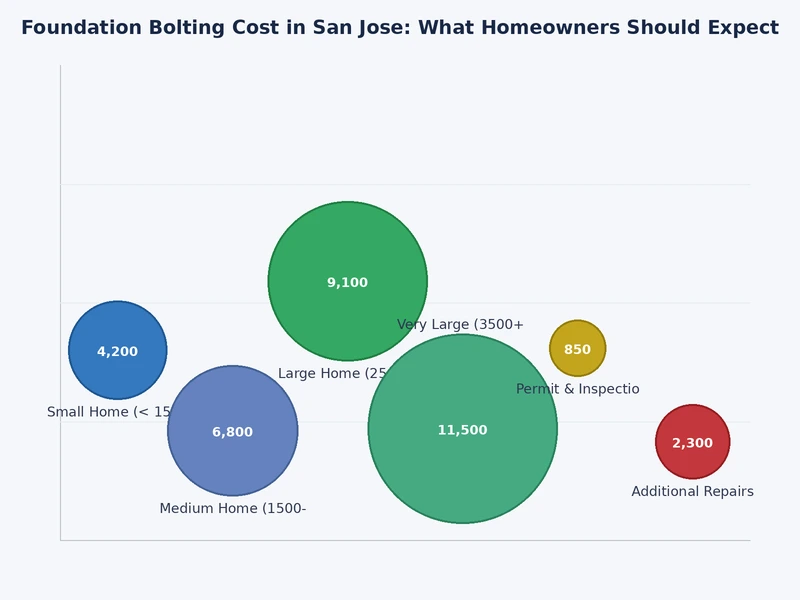

Real San Jose Projects and Their Costs

These are actual projects our team completed, with identifying details adjusted for privacy but costs reported accurately.

Neighborhood-by-Neighborhood Breakdown

• Willow Glen (1942 bungalow, 1,200 sq ft): 32 expansion bolts, good crawl space access, no cripple walls—$3,800 total including permits
• Rose Garden (1928 craftsman, 1,800 sq ft): 38 epoxy bolts due to aged concrete, 24-inch cripple walls requiring plywood bracing—$7,200 total
• Cambrian (1965 ranch, 2,100 sq ft): 44 bolts, extremely tight 14-inch crawl space requiring partial subfloor access—$8,900 total
• Naglee Park (1920 Victorian, 1,600 sq ft): Full perimeter bolting plus cripple wall bracing and two foundation plate connectors—$9,400 total
• Almaden Valley (1972 split-level, 2,400 sq ft): 28 bolts on accessible sections only (partial slab foundation)—$4,100 total

These numbers illustrate why blanket estimates are unreliable—home age and crawl space access matter more than square footage alone. Homeowners planning larger renovation projects can reference our breakdown of custom home building costs in the Bay Area for context on how foundation work fits into bigger budgets.

Pros and Cons of Foundation Bolting

Return on Investment

Foundation bolting delivers measurable value beyond safety, but it also has limitations that homeowners should weigh honestly before committing.

Advantages:

• Reduces earthquake insurance premiums by 5–20% with most California carriers
• Qualifies for the California Earthquake Authority's Brace + Bolt grant ($3,000 toward retrofit costs)
• Increases resale value and eliminates a common inspection flag for buyers
• Protects against the most common failure mode in moderate earthquakes (house sliding off foundation)
• Relatively non-invasive compared to full foundation replacement or home addition projects

Disadvantages:

• Does not address foundation cracking, settling, or soil liquefaction risks
• Insufficient alone for homes with tall cripple walls (additional bracing adds $1,500–$3,500)
• Requires access to the full perimeter—finished basements or low-clearance areas may need destructive access
• Not applicable to slab-on-grade construction (common in post-1970 San Jose homes)

For homeowners weighing foundation bolting against other property improvements, the cost compares favorably to most upgrades. A detached garage build runs ten times higher, while foundation bolting delivers arguably more critical structural value.

Frequently Asked Questions

Foundation bolting is the rare home improvement that costs less than a kitchen appliance upgrade but could save the entire structure—our team has never seen a properly bolted home slide off its foundation.
