Garage Conversion Floor Plans for Small Spaces in the Bay Area

By Minh Tran

According to the California Department of Housing and Community Development, over 40% of single-family homes in the Bay Area have attached garages under 400 square feet — spaces that, with the right garage conversion floor plans small spaces strategy, can become fully functional living units. Our team at 9Builders has completed dozens of these conversions across San Jose, Oakland, and Fremont, and we've learned that smart floor planning is the single biggest factor separating a cramped afterthought from a legitimate dwelling. The Bay Area's housing crisis, combined with California's streamlined garage conversion permitting, makes this one of the most cost-effective ways to add livable square footage to a property.

Most Bay Area garages fall between 200 and 440 square feet. That's not much, but it's more than many Manhattan studio apartments. The challenge isn't size — it's geometry. Standard two-car garages run roughly 20×20 feet with a low ceiling height of 8 feet or less. Single-car garages are even tighter at 12×20. Our experience shows that proper zoning within the floor plan adds 30-40% more perceived space compared to a naive open-box layout.

This guide covers the floor plan strategies, common pitfalls, and practical steps our team uses on every small-space garage conversion project in the Bay Area.

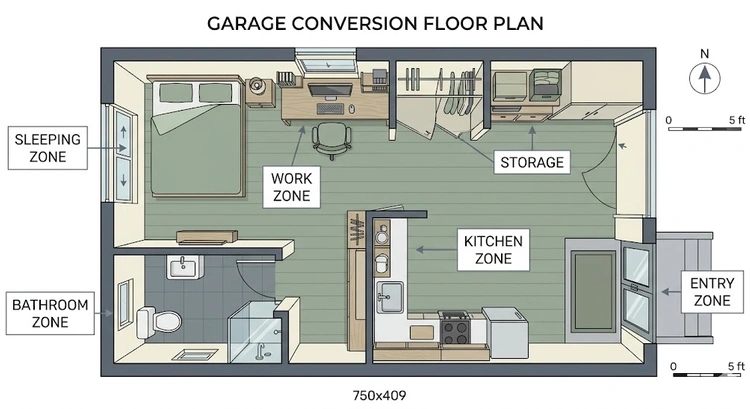

Proven Floor Plan Layouts for Garages Under 440 Sq Ft

Our team has refined two primary floor plan templates that work consistently across Bay Area garage dimensions. Both prioritize clear sight lines, natural light access (typically from the former garage door opening), and efficient plumbing runs.

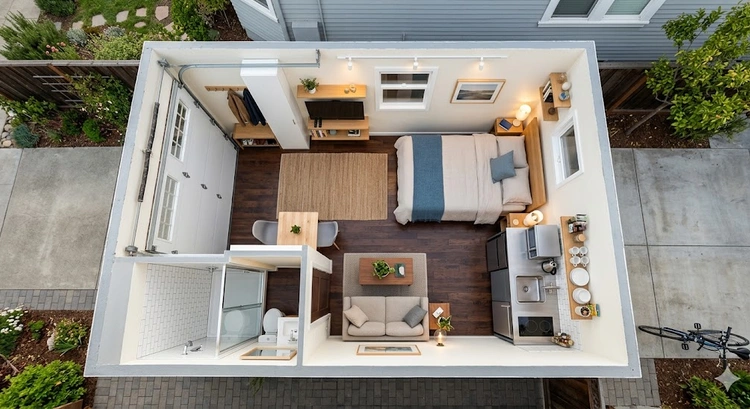

The Studio Layout (200–300 sq ft)

For single-car garages, the open studio is the only realistic option. The key principle: push all wet functions (kitchen and bath) to one wall to minimize plumbing costs and maximize open floor area.

• Kitchenette along the back wall (shared plumbing wall with bathroom)
• Bathroom in the rear corner — 5×7 feet minimum per California building code
• Living/sleeping zone occupying the front 60% of the space
• Former garage door replaced with a window wall or French doors for light penetration

The Compact One-Bedroom (350–440 sq ft)

Two-car garages allow a separated bedroom. Our preferred approach uses a partial-height wall (42 inches) or a sliding barn door to create visual separation without sacrificing airflow or light. The bedroom needs only 70 square feet minimum to meet California's habitability standards, though we recommend 90–100 square feet for comfort.

Pro tip: In garage conversion floor plans for small spaces, placing the bedroom at the rear wall (away from the street) provides better sound insulation without additional acoustic treatment.

Space-Maximizing Techniques That Cost Almost Nothing

Before investing in structural changes, several design decisions can dramatically improve how spacious a small garage conversion feels:

• Pocket doors instead of swing doors — saves 9 square feet per door
• Continuous flooring throughout (no transitions between zones)
• Ceiling-mounted storage in the bathroom and kitchen
• Wall-mounted toilet and floating vanity to expose floor area
• Stackable or combo washer-dryer units tucked into a 24-inch closet

Our team has also found that raising the ceiling — even by 6 inches through floor-level adjustments — creates a disproportionate sense of openness. Many Bay Area garages have exposed trusses that can be vaulted during conversion, adding perceived volume without changing the footprint. Anyone considering this approach should factor in the additional insulation requirements for cathedral ceilings.

Garage Conversions vs. Other ADU Options

Small-space garage conversions aren't always the right move. Here's an honest comparison based on our project data:

The numbers are clear: garage conversions win on speed and cost. The trade-off is size constraints. For anyone exploring setback requirements and finding a detached ADU won't fit, a garage conversion is often the only viable ADU path.

Step-by-Step Floor Plan Development Process

Our team follows a structured process for developing garage conversion floor plans small spaces demand precision on:

1. Measure the existing garage — interior dimensions, ceiling height, door locations, and utility access points. Wall thickness matters; most garages have 2×4 framing, but insulation requirements under Title 24 energy code may require furring out walls, reducing interior dimensions by 2–4 inches per side.
2. Identify plumbing connection points — the distance to the main sewer line determines bathroom placement. Every additional foot of plumbing run adds $50–$80 in the Bay Area.
3. Draft three layout options — we always present at least three configurations so the homeowner can evaluate trade-offs between bedroom separation, kitchen size, and storage.
4. Verify code compliance — minimum ceiling height (7 feet finished), egress windows, ventilation requirements, and parking replacement obligations.
5. Finalize and submit for permits — most Bay Area jurisdictions now process garage conversion permits faster than other ADU types. Our guide to garage conversion permits in San Jose covers the specific requirements.

Warning: Skipping the permit process can result in fines up to $50,000 and forced demolition. Anyone tempted to skip this step should review our breakdown of building without a permit in California.

Who Benefits Most From Small-Space Garage Conversions

Not every garage conversion serves the same purpose. The floor plan should reflect the intended use case from day one.

Rental Income Units

Studios targeting young professionals in cities like San Jose and Fremont should prioritize a full kitchen, in-unit laundry, and a dedicated workspace nook. Our data shows that units with a defined work area rent for 8–12% more than equivalent spaces without one. Anyone planning for rental income should also review our guide on designing ADU floor plans for maximum rental income.

Aging-in-Place Suites

For aging parents, accessibility drives the floor plan. That means:

• Zero-threshold shower (curbless, minimum 36×36 inches)
• 36-inch minimum doorways throughout
• Open floor plan with no level changes
• Reinforced walls for future grab bar installation

Home Office or Studio

These conversions may not require a full kitchen or bathroom, which simplifies permitting. However, our recommendation is to always include a bathroom — it future-proofs the space for ADU conversion later and adds significantly more property value.

Floor Plan Mistakes That Shrink Livable Space

After completing over 60 garage conversions in the Bay Area, our team has cataloged the most common floor plan errors:

• Oversized bathrooms — anything beyond 40 square feet in a sub-400 sq ft unit is wasted space. A well-designed 35 sq ft bathroom with a corner shower feels perfectly adequate.
• Ignoring the garage door wall — this is the largest uninterrupted wall and the primary opportunity for natural light. Replacing the door with a solid wall and one small window is a missed opportunity.
• Centering the bathroom — placing the bathroom in the middle of the floor plan creates two awkwardly narrow zones on either side. Push it to a corner.
• Forgetting mechanical space — water heater, electrical panel, and HVAC unit need floor or wall area. A tankless water heater mounted externally saves 6+ square feet of interior space.
• Long hallways — any hallway in a sub-400 sq ft space is a design failure. Every square foot of hallway is a square foot stolen from living area.

Pro insight: The most expensive mistake we see is placing plumbing on the wall farthest from the sewer connection. This single decision can add $8,000–$15,000 to a Bay Area garage conversion budget.

Essential Tools and Materials for Small-Space Conversions

Garage conversion floor plans for small spaces require specific material choices that standard-sized rooms don't demand. Here's what our team specifies on every compact conversion:

Flooring

Luxury vinyl plank (LVP) is our default. It handles the moisture issues common in garage slabs, installs over minor imperfections, and runs continuously without transitions — critical for visual space continuity. Thickness should be 5mm+ with an attached underlayment to address the cold concrete below.

Walls and Insulation

Closed-cell spray foam in 2×4 walls achieves R-21 without needing thicker framing. This saves 2 inches per wall compared to fiberglass batts in 2×6 framing — in a 20-foot-wide garage, that's 8 extra inches of living space.

Fixtures

• Wall-hung toilet (saves 10 inches of floor depth vs. standard)
• 24-inch apartment-size appliances instead of standard 30-inch
• Barn doors or pocket doors — never swing doors
• Recessed medicine cabinets (gains 4 inches of bathroom floor space)

Windows and Doors

The former garage door opening should become the primary light source. Our preferred approach is a full-width window wall or sliding glass door — this floods the interior with natural light and makes the space feel twice its actual size. Egress requirements mandate at least one operable window with 5.7 square feet of clear opening in the sleeping area.

Frequently Asked Questions

Key Takeaways

• Garage conversion floor plans for small spaces succeed when all wet functions cluster on one wall and hallways are eliminated entirely.
• Bay Area garage conversions cost $250–$400 per square foot and take 3–5 months — roughly half the time and two-thirds the cost of a detached ADU.
• The former garage door wall is the most valuable design asset; maximizing glazing there transforms perceived space more than any other single decision.
• Permit-first planning prevents costly rework — plumbing placement alone can swing the budget by $15,000 if not aligned with sewer connections from the start.
