ADU Size Limits and Setback Requirements in Bay Area Cities

By Wei Chen

Bay Area homeowners face a clear, codified set of rules when sizing a new accessory dwelling unit. ADU size limits in the Bay Area are defined first by California state law, which sets minimum allowances every city must honor, and then by local ordinances that layer additional requirements on top. Our team at 9Builders works with property owners across the region, and setback distances and maximum square footage are consistently the first regulatory variables that shape what is buildable on any given parcel.

California's ADU reform legislation — including Senate Bill 897 and related statutes — has meaningfully expanded what property owners can build. The state now mandates that local governments permit detached ADUs of at least 800 square feet, at a maximum of 16 feet in height, with no more than 4-foot side and rear setbacks. Cities may permit larger units, and many in the Bay Area do. None, however, may enforce rules stricter than the state floor.

Financing decisions often run parallel to size planning. Our detailed overview of ADU financing options in the Bay Area — covering loans, HELOCs, and grant programs — helps property owners understand budget parameters alongside regulatory constraints. Knowing both simultaneously produces a more realistic project scope from the outset.

The Regulatory Framework Behind ADU Size Limits in the Bay Area

California's ADU statutes create a statewide baseline. Local governments may expand on that baseline but cannot impose regulations that effectively prohibit construction or make a project infeasible.

State Law as the Baseline

The California Department of Housing and Community Development (HCD) publishes ADU guidelines that all jurisdictions must follow. Key state-mandated minimums include:

• Detached ADUs: Cities must allow at least 800 square feet of habitable floor area
• Height: At least 16 feet for detached ADUs on lots with a single-family home
• Side and rear setbacks: No more than 4 feet required from property lines
• Junior ADUs (JADUs): Capped at 500 square feet; must be contained within the primary dwelling's existing envelope
• Garage conversions: Exempt from new setback requirements that would preclude conversion of an existing structure

Cities that attempt to enforce stricter rules risk having their ordinances preempted by state law. Our team advises every client to request the current local ADU ordinance directly and compare it against active state statutes before finalizing any design direction.

How Local Ordinances Layer on Top

Most Bay Area cities have adopted ordinances that expand beyond the state minimum. These local rules typically govern:

• Maximum ADU square footage above the 800 sq ft state floor
• Architectural compatibility standards for materials and rooflines
• Parking replacement requirements when converting covered garage space
• Utility connection fees, capacity charges, and sewer lateral requirements
• Design review thresholds in historic or hillside overlay zones

Pro Insight: Always request the most current ADU ordinance directly from the planning department — versions posted online are frequently out of date by six months or more.

Bay Area City-by-City Size and Setback Data

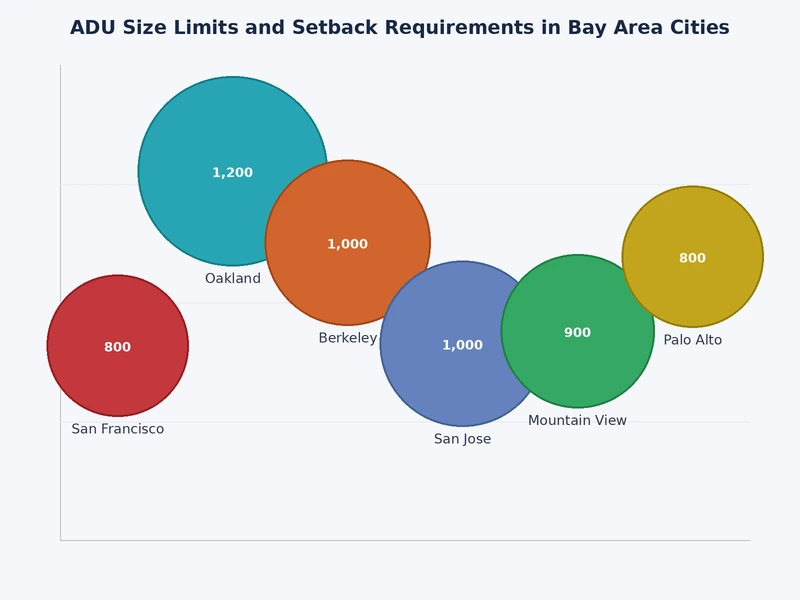

The table below summarizes the most commonly enforced size and setback parameters across ten major Bay Area cities. These figures reflect general ordinance provisions. Our team verifies current requirements with each relevant planning department before finalizing any design.

San Jose's permitting process is one our team has navigated across dozens of projects. For a detailed breakdown of submission timelines, plan-check fees, and common correction items, our guide on the ADU permit process in San Jose covers every stage from pre-application to final inspection.

How to Calculate Maximum Allowable ADU Size on Any Parcel

Determining the buildable ADU envelope on a specific lot requires working through several variables in sequence. Our team follows a consistent process that minimizes surprises at the plan-check stage.

Step 1: Identify the Lot Size and Zoning District

• Retrieve the parcel's Assessor Parcel Number (APN) from county records
• Confirm the zoning designation — R-1, R-2, R-3, or equivalent — via the city's online zoning map
• Check for special overlay zones: hillside, historic, flood, and fire hazard designations often impose additional constraints beyond the base zoning
• Note any deed restrictions or CC&Rs that may affect structure placement

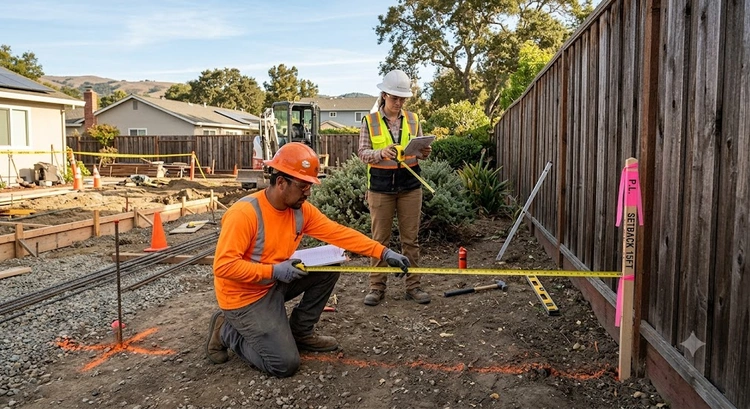

Step 2: Apply Setback Rules to Map the Buildable Envelope

• Mark off the front setback — typically 20–25 ft for the primary dwelling; ADUs are generally exempt from front-setback requirements
• Apply the 4 ft side and rear setbacks mandated by state law
• Identify any utility or drainage easements crossing the rear of the lot — these directly reduce the buildable rectangle
• Calculate the remaining footprint area available within the setback envelope

Step 3: Check Lot Coverage and Floor Area Ratio Limits

Even within the setback envelope, lot coverage caps may restrict the ADU footprint further. Lot coverage is the percentage of the lot area occupied by all structures combined. Most Bay Area residential zones set this limit at 40–50%.

• Calculate the existing primary dwelling's footprint as a percentage of the total lot area
• Subtract from the city's maximum coverage limit to identify the remaining structural allowance
• Apply that remaining allowance to determine the maximum ADU footprint before exceeding the cap

Our complete cost analysis for San Jose projects — including how size choices affect total construction cost — is covered in our post on the cost to build an ADU in San Jose.

Setback Strategies That Maximize Buildable Area

Positioning an ADU optimally within the allowed envelope is both a regulatory exercise and a design challenge. Several strategies consistently expand the net buildable area without violating local rules.

Detached vs. Attached ADUs: Setback Differences

Attached ADUs share at least one wall with the primary dwelling and are generally governed by the primary dwelling's existing setbacks rather than standalone ADU setback rules. This distinction matters on narrow lots where a 4 ft detached setback would eliminate significant floor area. Key considerations include:

• Attached ADUs typically require no additional side setback beyond the primary structure's established building line
• Fire separation requirements between the two units must still be met per CBC standards
• Structural connection to the existing building may increase construction complexity and cost relative to a detached option

Garage Conversions and the Zero-Setback Advantage

Converting an existing garage or accessory structure into an ADU carries a significant regulatory benefit. State law prohibits cities from imposing new setback requirements on conversions where the existing structure already sits within the setback zone. A detached garage built against or near a property line is legally convertible in most cases.

• The existing structure's footprint defines the maximum footprint for the conversion — no expansion beyond existing walls is treated as a conversion
• Vertical additions above the garage may trigger standard height limits and design review
• Our guide on open floor plan ADU designs that maximize small spaces demonstrates how thoughtful spatial planning makes even a compact converted garage feel generously proportioned

When to Build at Maximum Size — and When Not To

Maximizing square footage is not always the most effective strategy. Our team evaluates each project against the property owner's specific goals before recommending a target size.

Cases Where Maximum Size Is the Right Call

• Long-term rental income: Larger units command significantly higher monthly rents, improving return on investment over the project's lifespan
• Multigenerational living: Families housing aging parents or adult children benefit from the full bedroom count and living space that a 1,000–1,200 sq ft unit can provide
• Future resale value: A permitted, code-compliant ADU at or near the city's maximum adds measurable and appraised value to the property
• Lot size permits it without straining coverage limits: Larger parcels with low existing coverage can accommodate the maximum ADU size without compromising usable yard space or future improvements

Cases Where a Smaller Unit Serves the Goals Better

• When lot coverage limits have already been largely consumed by the primary dwelling and existing accessory structures
• When construction budget constraints make a smaller unit the only financially viable option without overextending financing
• When the intended use is a studio or one-bedroom rental rather than a full family unit — the rental premium for going from 850 to 1,200 sq ft may not justify the cost delta
• When the project is part of a broader SB 9 lot split strategy — our overview of SB 9 lot split requirements in the Bay Area explains how ADU size interacts with newly created parcels and their individual coverage calculations

Warning: Designing to the absolute ordinance maximum without first verifying lot coverage and setback interactions is the single most common cause of failed first-round plan checks — a delay our team works to prevent through pre-design calculations.

Maintaining ADU Compliance After Construction

Regulatory compliance does not end at the final inspection sign-off. Several ongoing obligations and potential triggers can create compliance issues for property owners long after an ADU is occupied.

Permit Record-Keeping Obligations

Our team advises every client to retain physical and digital copies of the following documents indefinitely:

• Approved building permit with all plan-check annotations and correction responses
• Final inspection sign-off or Certificate of Occupancy
• As-built drawings reflecting any field changes approved during construction
• Energy compliance documentation — Title 24 calculations signed by the engineer of record
• Mechanical, electrical, and plumbing permits and final cards

These records become critical during refinancing, property sale, or when a neighbor-initiated code complaint triggers a city inquiry. Our post on questions to ask before signing an ADU builder contract covers which document-delivery obligations should be written into any construction agreement before work begins.

Events That Trigger a Compliance Review

Several downstream events can cause a city to revisit an ADU's compliance status:

• A new permit pulled for additions or modifications to the primary dwelling
• Neighbor-initiated code complaints about fence height, drainage, or parking that prompt a site inspection
• Unpermitted work performed on the ADU after the final inspection was issued
• Property sale — buyers' lenders and title companies routinely audit permit histories, and an unresolved correction can delay or derail a close of escrow

Maintaining accurate records and avoiding unpermitted modifications are the two most effective long-term safeguards. Structuring the original project budget with adequate contingency — rather than cutting corners under cost pressure — reduces the risk of shortcuts that create compliance gaps. Our guide on setting a realistic budget with a Bay Area contractor addresses how to allocate contingency reserves effectively.

Common Myths About ADU Size Limits and Setbacks

Misinformation about ADU regulations is widespread. Our team encounters the same misconceptions in nearly every initial consultation, and addressing them early prevents costly redesigns later.

Myth 1: Lot Size Is the Primary Constraint

Lot size is one factor, but it is rarely the binding constraint on its own. Setback requirements and lot coverage limits frequently define the outer boundary of what is buildable before raw lot area becomes relevant. A 6,000 sq ft lot with an existing 2,400 sq ft primary dwelling at 40% lot coverage may have virtually no room for additional structure regardless of what the municipal ADU size ordinance permits in theory.

Myth 2: Garage Conversions Have No Size or Building Restrictions

The setback exemption for existing structures does not eliminate all constraints. Garage conversions must still comply with:

• Minimum ceiling height requirements — typically 7 ft minimum for habitable space, 8 ft preferred
• Egress window standards for any sleeping areas per CBC Section R310
• Separate utility metering requirements in many jurisdictions
• Energy efficiency upgrades to the building envelope per current Title 24 standards

Myth 3: State Law Eliminated All Local Discretion

State ADU law significantly curtailed local authority, but did not eliminate it entirely. Cities retain discretion over architectural design standards, utility fee structures, and design review processes in designated historic or hillside zones. Our team reviews both state and local requirements in parallel for every project — treating state law as the floor and local code as the ceiling between which the design must fit.

Frequently Asked Questions

Key Takeaways

• ADU size limits in the Bay Area begin at the state minimum of 800 sq ft for detached units, with many cities permitting up to 1,200 sq ft — making local ordinance research the essential first step for any project.
• State law caps side and rear setbacks at 4 feet for detached ADUs, and existing structures being converted are exempt from new setback requirements entirely.
• Lot coverage calculations and existing footprint often constrain ADU size more than the ordinance maximum does — running those numbers before design begins prevents costly mid-project revisions.
• Maintaining complete permit documentation after construction and avoiding unpermitted modifications are the most effective safeguards against compliance issues during future refinancing or sale.
