How Much Does a Water Heater Recirculation Pump Cost?

By Raven Vuong

Does waiting two minutes for hot water to arrive seem like a small inconvenience — or a genuine drain on a household's budget and water supply? For many Bay Area homeowners, the answer determines whether a hot water recirculation pump cost is worth investigating. The short answer: most systems run between $200 and $900 installed, though that range shifts considerably based on home size, pipe layout, and whether a dedicated return line already exists. Homeowners planning any kind of plumbing upgrade as part of a home remodeling project often discover that adding a recirculation pump at the same time reduces labor costs substantially.

Recirculation pumps solve a straightforward problem: hot water sits stagnant in pipes while residents wait for it to arrive at the faucet, wasting both water and the energy used to heat it. According to the U.S. Department of Energy, homes can waste 12,000 gallons of cold water annually waiting for hot water to reach fixtures, making recirculation systems a meaningful conservation measure. For Bay Area homes where water rates rank among the highest in the nation, that figure carries real financial weight.

Understanding what drives the hot water recirculation pump cost requires looking at equipment, labor, and the existing plumbing infrastructure in the home. This guide breaks down each factor so homeowners can approach contractor conversations with clear expectations.

What a Recirculation Pump Actually Costs

The hot water recirculation pump cost breaks into two primary components: the equipment itself and the labor to install it. Each varies depending on the system type and the complexity of the home's existing plumbing.

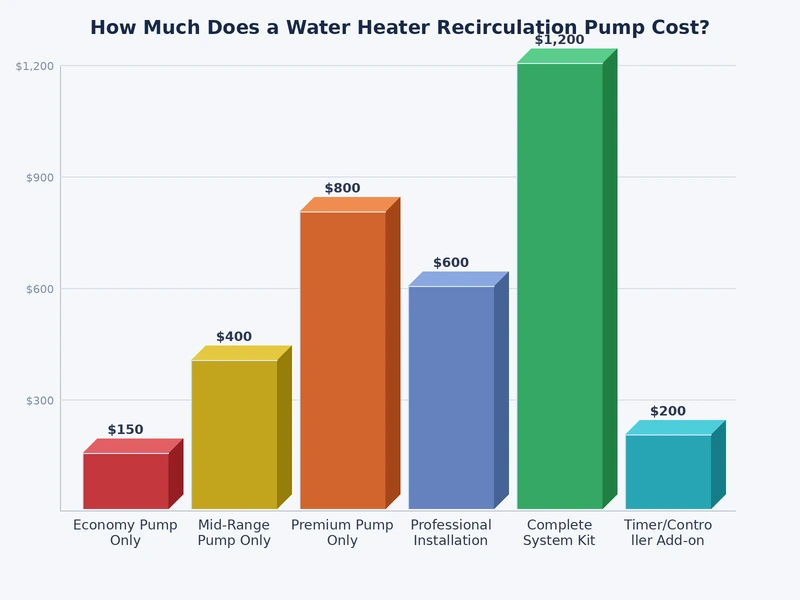

Equipment Costs

• Demand-controlled pumps (button or sensor activated): $150–$500 for the unit alone
• Timer-based systems: $100–$350; most energy-efficient when schedules are predictable
• Continuous-circulation systems: $80–$250 for the pump, but higher operating costs over time
• Comfort system kits (no dedicated return line required): $180–$450 including the crossover valve

Labor and Total Installed Cost

Bay Area plumber rates typically run $150–$250 per hour, meaning a straightforward installation on a home with an existing return line can be completed in one to two hours, while retrofitting a return line into a finished home may require a full day or more of work.

What Drives the Price Up or Down

Several variables influence where the final hot water recirculation pump cost lands within that wide range. Contractors consistently point to the same set of factors when explaining price differences between similar-sized homes.

Factors That Increase Cost

• Absence of a dedicated return line, which requires running new copper or PEX tubing back to the water heater
• Slab-on-grade construction, where pipes are inaccessible without jackhammering or creative rerouting
• Long pipe runs — homes over 3,000 square feet or multi-story layouts require more powerful pumps and more complex installation
• Permit requirements in some Bay Area jurisdictions, adding $100–$300 to the project
• Water heater location in an unconditioned garage or distant utility closet, increasing pipe length and labor time

Factors That Reduce Cost

• Existing dedicated return line — the single biggest cost reducer
• Water heater in a central, accessible location
• Bundling installation with other plumbing work, such as a water heater replacement
• Choosing a comfort system kit that eliminates the need for a return line by using the cold-water line as a return path

Homeowners undergoing a broader plumbing overhaul — for instance, as part of a garage-to-ADU project — may find insights in guides covering garage conversion plumbing requirements in San Jose, where recirculation system integration is a common discussion point during the design phase.

Common Misconceptions About Recirculation Pump Pricing

Several persistent myths lead homeowners to either overpay or dismiss recirculation pumps entirely based on inaccurate assumptions about how these systems work and what they cost.

Myth 1: All Recirculation Pumps Waste Energy

Continuous-circulation systems do run a small pump motor around the clock, which adds modestly to electricity bills, but demand-controlled and timer-based models only activate when hot water is actually needed. Modern demand-controlled pumps use as little as 25–45 watts, comparable to a single LED bulb running briefly several times per day. A properly selected system often saves more in water costs than it spends on electricity, particularly in high-rate utility districts.

Myth 2: The Cheapest Pump Provides the Same Results

Budget units priced under $100 sometimes lack adjustable timers, flow sensors, or temperature controls, which limits their ability to optimize performance for a specific home's layout. Pumps in the $200–$400 range tend to offer features that extend system life and reduce operating costs over time, making the higher upfront expense the more economical choice across a five-to-ten year horizon.

Myth 3: Installation Always Requires Opening Walls

Comfort system kits, which route recirculated water through the cold-water line back to the heater, require no dedicated return line and typically install at the water heater and the farthest fixture only. Many installations complete without any wall penetration beyond what already exists around the water heater connection point.

Benefits and Drawbacks Worth Considering

Like any home system upgrade, recirculation pumps offer meaningful advantages alongside genuine limitations that homeowners should weigh before committing to the investment.

Key Benefits

• Immediate hot water at fixtures, typically within 5–15 seconds depending on pipe length
• Reduction in water waste, which translates directly to lower water bills in metered Bay Area municipalities
• Reduced wear on pipes caused by thermal expansion and contraction from repeated heating and cooling cycles
• Increased home value perception, particularly in markets where buyers prioritize efficiency upgrades
• Compatibility with tankless water heaters when a pump model specifically rated for on-demand systems is selected

Genuine Drawbacks

• Upfront cost of $330–$2,000 depending on the system and home configuration
• Continuous-loop systems can slightly reduce the effective temperature of the cold-water line, an issue some residents notice
• Pump motor lifespan of 10–15 years means eventual replacement will be necessary
• Homes with very short pipe runs — where hot water arrives in under 30 seconds naturally — gain minimal practical benefit

A broader energy assessment can help homeowners determine whether a recirculation pump is the highest-priority upgrade or whether other systems should take precedence. A home energy audit in the Bay Area provides the data needed to rank upgrades by return on investment and identify where the most significant efficiency gaps exist.

Installation Best Practices for Long-Term Performance

Contractors who specialize in Bay Area residential plumbing consistently identify a set of installation decisions that determine whether a recirculation system performs well for a decade or requires service calls within the first few years.

Pump Sizing and Placement

• Match pump flow rate (typically 0.5–3 GPM) to the home's pipe diameter and total loop length; oversized pumps create unnecessary noise and pressure
• Install the pump at the water heater outlet, not at a mid-loop location, to ensure consistent flow direction throughout the system
• Use a ball valve on both sides of the pump to allow future service without draining the entire system

Controls and Scheduling

• Program timer-based systems to match actual household occupancy patterns — running the pump between 11 PM and 5 AM serves no purpose and accumulates unnecessary operating hours
• Install a dedicated outlet near the water heater for the pump's power supply rather than using an extension cord
• For tankless water heater compatibility, verify the pump model includes a flow sensor that prevents false activation of the on-demand heater

Materials and Fittings

• Use brass or stainless steel fittings at connection points; plastic fittings under constant thermal cycling tend to develop slow leaks over time
• Apply pipe insulation to the return line if one is installed, reducing heat loss and improving system efficiency by a measurable margin

Costly Errors Homeowners Make When Buying a Pump

The recirculation pump market includes a wide range of products, and purchasing decisions made without adequate research frequently lead to either underperformance or unnecessary expense. Industry observers note several patterns that repeat consistently.

Selecting a Pump Without Assessing the Return Line Situation

Purchasing a standard recirculation pump without first confirming whether the home has a dedicated return line is the most common and expensive mistake. Homeowners who buy a standard pump and then discover they need a comfort system kit — or that they need a full return line installed — often end up replacing the initial purchase entirely, doubling equipment costs.

Choosing Continuous Circulation Without Reviewing Utility Rates

In areas where electricity rates are tiered or time-of-use pricing applies — a common structure across PG&E territory in the Bay Area — running a continuous-circulation pump during peak hours can add meaningfully to monthly bills. Demand-controlled systems represent the more cost-effective choice for households on variable-rate utility plans, a detail that is rarely prominently displayed on pump packaging.

Skipping the Insulation Step

Installing a return line without insulating it undermines a significant portion of the energy savings the system is designed to deliver. Uninsulated return pipes lose heat along their length, causing the pump to run more frequently to maintain temperature, which increases both wear on the motor and electricity consumption.

Homeowners who have recently reviewed projects like sewer line replacement costs in the Bay Area will recognize a familiar pattern: the upfront investment in quality materials and proper installation almost always costs less than correcting shortcuts discovered during a follow-up service visit.

When a Recirculation Pump Makes Sense — and When It Doesn't

Not every home benefits equally from a recirculation system, and the honest assessment of whether the investment is justified depends on several measurable conditions rather than general enthusiasm for home upgrades.

Situations Where the Investment Is Well-Justified

• Homes where the water heater is located more than 50 feet from the farthest bathroom or kitchen fixture
• Multi-story homes where hot water consistently takes 90 seconds or more to arrive at upper-floor fixtures
• Households with high daily water usage where the cumulative waste reduction over a year produces measurable bill savings
• ADU conversions or home additions where new plumbing is being run anyway and a return line can be incorporated at minimal additional cost
• Homes in drought-sensitive water districts where water conservation rebates may offset part of the installation cost

Situations Where the Investment Is Harder to Justify

• Small homes or condos where hot water arrives within 20–30 seconds naturally, offering minimal wait-time reduction
• Homes where the water heater is scheduled for replacement within two to three years, making it more economical to bundle the recirculation system with that future project
• Properties where slab construction makes return-line installation prohibitively expensive relative to the comfort benefit gained
• Vacation properties or part-time residences with irregular occupancy patterns that make the cost-per-use ratio unfavorable

Frequently Asked Questions

Final Thoughts

The hot water recirculation pump cost is a manageable investment for most Bay Area homeowners, particularly when the project is bundled with existing plumbing or remodeling work rather than treated as a standalone call. The 9Builders team works with homeowners throughout the Bay Area on plumbing integration, home additions, and ADU projects where recirculation systems are a natural part of the design conversation — reaching out to discuss the specifics of a home's layout is the most direct path toward an accurate project estimate and a system that performs as expected for years to come.
