How Ductless Mini Split Systems Work for Bay Area Homes

By Mei Lin

A ductless mini split Bay Area installation delivers zoned climate control without the ductwork that most Bay Area homes were never built to accommodate. The system is not a compromise — it is the correct HVAC specification for retrofit projects, ADUs, and additions where extending existing ductwork is impractical or impossible. If you are planning a home remodeling project that creates new conditioned space, a mini split should be the first mechanical system on your specification list.

The Bay Area presents a layered climate challenge: coastal fog and damp winters on the west side, inland heat spikes in the valleys, and microclimatic variation from block to block. A single-thermostat central system cannot address that variability. Inverter-driven compressors modulate output continuously, consuming only the energy each zone actually requires — a structural advantage over conventional forced-air equipment that runs at full capacity or not at all.

Before purchasing equipment, a home energy audit provides the Manual J load calculations needed to size each zone correctly. Oversized units short-cycle and fail to dehumidify. Undersized units run continuously without reaching setpoint. Neither outcome is acceptable, and both are avoidable.

How Ductless Mini Split Technology Works

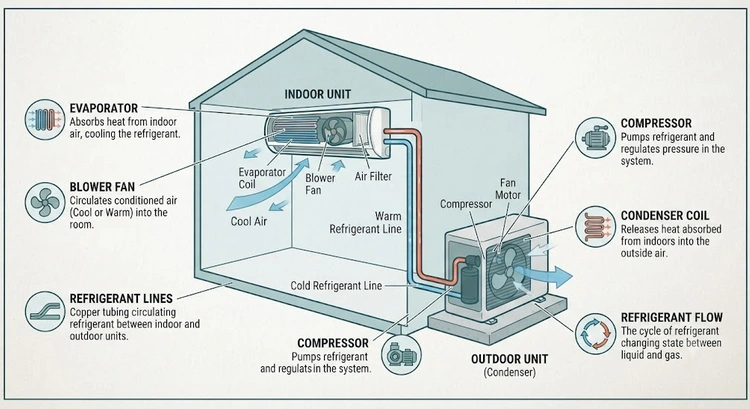

A mini split system consists of two core components: an outdoor condensing unit and one or more indoor air handlers. A 3-inch conduit bundle — containing refrigerant tubing, a power cable, and a condensate drain line — connects the two through a single wall penetration. No ductwork. No air handler in a cramped attic. No supply-and-return register network to balance.

The Refrigeration Cycle

The outdoor unit houses the compressor, condenser coil, and expansion valve. In cooling mode, pressurized refrigerant travels to the indoor evaporator coil, where it absorbs heat from room air and carries it outside. In heating mode — the configuration used most often in Bay Area winters — the cycle reverses. The outdoor unit extracts latent heat from ambient air, even at temperatures as low as -13°F on high-performance models, and transfers it indoors. This heat pump operation moves energy rather than generating it, which is why the efficiency advantage over resistance heating is not incremental but categorical.

Inverter Compressor Advantage

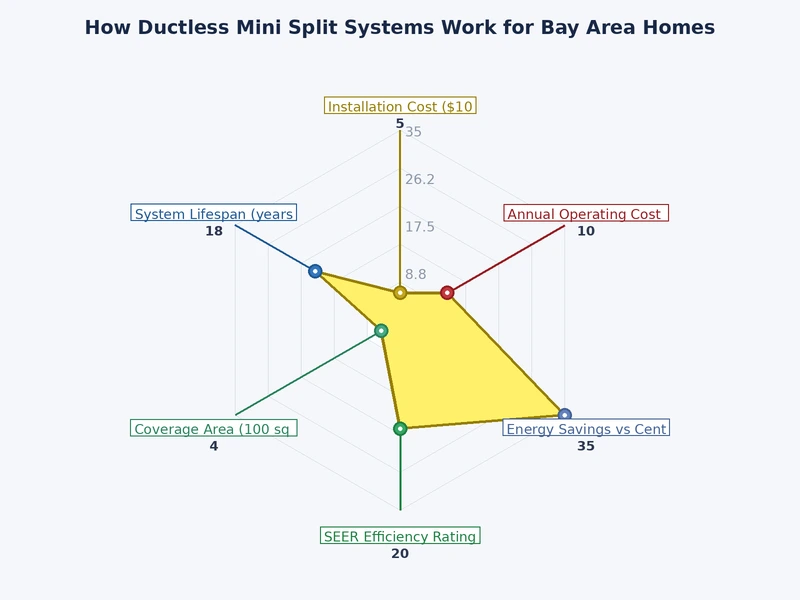

Conventional compressors run at one speed. Inverter compressors vary speed continuously to match actual load. In the Bay Area's temperate climate, where extreme temperatures are rare, a properly sized inverter unit operates at 30–40% capacity during most occupied hours. That behavior produces SEER ratings of 20–30 — compared to 13–18 for standard central forced-air systems. The gap is structural, not marginal, and it accumulates on every utility bill for the system's 15–20 year service life.

Where Ductless Mini Splits Perform Best in Bay Area Homes

The ductless mini split Bay Area use case is not confined to new construction. Retrofit applications are where these systems deliver the most dramatic results, particularly in older homes with no existing HVAC infrastructure or in spaces that cannot practically connect to existing equipment.

ADUs and Garage Conversions

Accessory dwelling units and converted garages are the dominant mini split application in the region. Running new ductwork into a converted space is almost always cost-prohibitive — trunk lines, plenums, fire dampers, and AHU capacity margins rarely work in your favor. A single-zone mini split requires only a 3-inch wall penetration and a dedicated electrical circuit. For a full breakdown of ventilation strategies in converted spaces, including where mini splits fit alongside ERVs and exhaust fans, see the guide on garage conversion ventilation and HVAC solutions for Bay Area climates.

Room Additions and Whole-Home Systems

Extending existing ductwork to a new room addition is technically possible but rarely practical. Duct friction loss, AHU capacity margins, and balancing across existing zones almost never accommodate an additional 400–600 square feet without a full system redesign. A mini split added to the new zone leaves the existing HVAC system untouched while delivering superior performance in the addition itself.

High-performance new construction increasingly uses multi-zone mini splits as the primary whole-home HVAC strategy. A single outdoor unit supports four to eight indoor handlers, each independently controlled. This eliminates the supply-and-return duct losses that account for 20–30% of conditioned air in a typical ducted system. For a direct cost-of-ownership comparison with gas-fired alternatives, the analysis in the heat pump vs. furnace guide quantifies how ductless heat pumps stack up over a 10-year horizon.

Single-Zone vs. Multi-Zone: Matching the System to Your Home

The choice between single-zone and multi-zone equipment is the most consequential decision in any mini split project. Overshooting on zones wastes capital; undershooting on capacity creates comfort deficits that no amount of programming will resolve.

Single-Zone Systems

Single-zone units pair one outdoor condenser with one indoor handler. They are the correct specification for:

• Isolated spaces with no connection to the main HVAC system — ADUs, garage conversions, detached workshops
• Problem rooms that central HVAC chronically under-serves due to duct imbalance or distance from the AHU
• Spaces with highly variable occupancy where conditioning the rest of the house to serve one room is wasteful

Multi-Zone Systems

Multi-zone systems connect multiple indoor handlers to one outdoor unit, reducing equipment footprint and cost-per-zone relative to separate single-zone installations. However, total indoor nameplate capacity must not exceed 100–130% of outdoor unit capacity — the manufacturer-specific threshold varies, but overshooting it causes the compressor to short-cycle under partial load, degrading both efficiency and longevity.

Installation and Sizing Mistakes That Undermine Performance

Ductless mini splits are robust, field-proven equipment. Most failures trace to decisions made before the unit was ever powered on. These mistakes are preventable.

Relying on Square-Footage Rules Instead of Manual J

Manual J load calculations — not the BTU-per-square-foot charts that supply houses distribute — are the correct sizing method. A 1,200-square-foot San Jose home with single-pane windows and no attic insulation carries a fundamentally different cooling load than a 1,200-square-foot Pacifica home with double-pane glazing and R-30 attic insulation. The same square footage, different climate, different envelope, different answer. Use Manual J.

Improper Line Set Routing

Refrigerant line sets have manufacturer-specified maximum lengths and maximum elevation differentials. Exceeding either — or routing line sets through unconditioned attic space without insulation — degrades system capacity and damages the compressor over time. Every line set run should be documented before walls are closed, both for warranty purposes and for future service access.

Skipping Title 24 Compliance and Permits

California's Title 24 energy code applies to new HVAC installations, replacements, and most retrofit scenarios. Mini split installations are not exempt. Permit-pulled projects require a CF1R/CF2R documentation set and may require HERS verification. The California Energy Commission has intensified enforcement in recent years. Unpermitted HVAC work surfaces at sale — at the worst possible moment — and must be retroactively legalized or removed.

Underestimating Electrical Requirements

Each outdoor unit requires a dedicated circuit, typically 240V/20A to 240V/40A depending on capacity. Older Bay Area homes frequently lack the panel headroom to support a new mini split without an upstream electrical upgrade. Verify available ampacity before purchasing equipment. Discovering a panel deficiency mid-installation adds cost, delay, and a second permit to a project that was already scoped.

Routine Maintenance That Protects Your Investment

A properly maintained mini split operates efficiently for 15–20 years. Deferred maintenance compresses that lifespan and voids most manufacturer warranties. The maintenance schedule is not complicated — it requires consistency, not expertise.

Monthly Filter Cleaning

Indoor air handlers have washable mesh pre-filters that capture dust, pet dander, and particulates. In Bay Area homes near highways, open fields, or high-pollen corridors, monthly cleaning during active use is the correct interval. Remove, rinse with lukewarm water, dry completely, reinstall. A clogged filter forces the evaporator coil to work harder, reduces airflow across the heat exchanger, and increases the risk of coil freeze — which can damage the drainage system and the coil itself.

Annual Coil and Drain Service

Evaporator coils accumulate biological growth in the Bay Area's humid coastal zones. Annual cleaning with a no-rinse coil cleaner is the minimum standard. Flush the condensate drain pan and drain line at the same service visit. A blocked drain causes condensate overflow — ceiling and wall damage that costs far more to remediate than the annual cleaning it replaces. Do not defer this service.

Outdoor Unit Clearance and Biennial Inspection

The outdoor condenser requires unobstructed airflow: 12 inches minimum on all sides, 18 inches above. Bay Area lots are narrow, and vegetation and debris accumulate quickly in side yards. Restricted airflow triggers high-pressure lockout and shortens compressor life. Refrigerant does not deplete under normal operation — if a system needs refrigerant, there is a leak. A biennial inspection by a licensed HVAC technician covering electrical connections, refrigerant charge, and defrost cycle operation is the appropriate service interval for a leak-free system.

Frequently Asked Questions

Key Takeaways

• Inverter-driven ductless mini splits are the most efficient and flexible HVAC solution for Bay Area homes, ADUs, and additions — particularly where existing ductwork is absent or impractical to extend.
• Manual J load calculations are mandatory for correct zone sizing; square-footage rules produce consistently wrong answers in the Bay Area's variable climate.
• Title 24 compliance and mechanical permits are required for mini split installations in California — unpermitted HVAC work is a documented liability at sale.
• Monthly filter cleaning and annual coil and drain service are the minimum maintenance requirements to protect system longevity and manufacturer warranty coverage.
