How to Know If Your Bay Area Home Needs Earthquake Retrofitting

By Minh Tran

If the home was built before 1980 and sits on a raised foundation, the answer to "does my home need earthquake retrofitting" is almost certainly yes. The Bay Area sits on some of the most active fault lines in the country, and thousands of older homes remain vulnerable to moderate shaking that could knock them off their foundations. Understanding the warning signs — and separating real risk from unnecessary worry — saves both money and lives. For a personalized evaluation, homeowners can start with a free advisory consultation to assess their specific situation.

Earthquake retrofitting means strengthening the connection between a house and its foundation so the structure doesn't slide, tip, or collapse during seismic activity. The most common upgrades include foundation bolting (anchoring the wooden sill plate to the concrete foundation) and cripple wall bracing (reinforcing the short stud walls between the foundation and the first floor). These two measures alone address the failure points responsible for most earthquake damage in residential homes.

Not every home needs the same level of work. A 1960s ranch on a raised foundation faces different risks than a 2010 home built to modern seismic codes. The key is knowing which category a property falls into — and acting before the next major quake, not after.

Basic Signs vs. Serious Red Flags

Some signs of retrofit need are obvious. Others hide in crawl spaces and behind drywall. Knowing the difference between a minor concern and an urgent structural risk helps homeowners prioritize.

Easy Visual Checks Any Homeowner Can Do

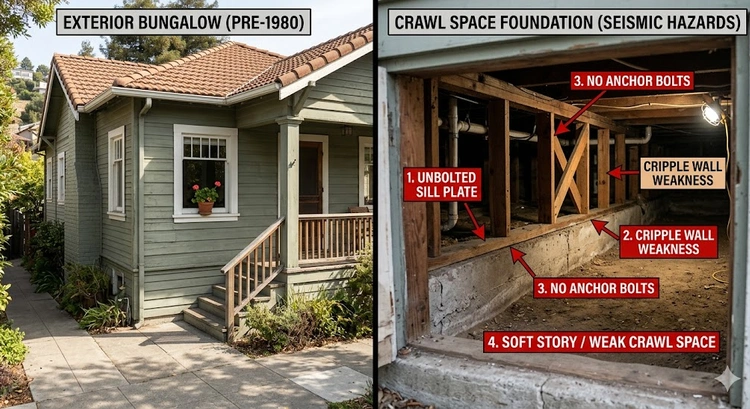

Start with the foundation. Walk the perimeter of the house and look for cracks wider than a quarter inch in the concrete. Hairline cracks are normal settling. Wider gaps suggest the foundation has shifted or deteriorated. Next, check whether the house sits on a raised foundation with a crawl space underneath. If short wooden walls (cripple walls) are visible between the ground and the floor, those walls are a primary earthquake vulnerability.

Inside the crawl space, look for the sill plate — the horizontal board sitting directly on the concrete. If there are no bolts connecting that board to the foundation, the house can literally slide off during shaking. Many pre-1950 homes were simply set on top of the foundation with gravity as the only anchor.

Other easy checks include looking for a water heater that isn't strapped, chimney masonry that's already cracking, or a garage with a wide opening and no shear wall reinforcement above it.

Structural Warnings That Require Professional Eyes

Some problems aren't visible without opening walls or crawling into tight spaces. Soft-story conditions — where a ground floor has large openings like garages or storefronts — create a weak point that can pancake during lateral movement. Multi-story homes with tuck-under parking are especially vulnerable. Rotted mudsills, corroded anchor bolts, and unbraced cripple walls taller than four feet all fall into the "call a professional" category.

Pro tip: If cripple walls are taller than four feet, standard bracing panels may not be sufficient. A structural engineer should calculate the exact shear resistance needed for the wall height.

Smart Steps for a Proper Retrofit Assessment

A proper assessment goes beyond a visual walkthrough. It involves structural calculations, soil considerations, and knowledge of local code requirements.

Hiring a Qualified Inspector

Not all home inspectors evaluate seismic readiness. Look for a licensed structural engineer or a contractor who specializes in earthquake retrofitting. The inspector should examine the foundation type, the connection between the framing and foundation, cripple wall height and bracing, and the overall lateral load path. In cities like San Jose, mandatory retrofit programs for certain building types add another layer. Understanding foundation bolting requirements and costs in San Jose helps set realistic expectations before the inspector arrives.

What the Report Actually Tells Homeowners

A good assessment report categorizes findings by urgency. It identifies which connections are missing, which structural elements are undersized, and what code standards apply. Most reports reference the USGS Earthquake Hazards Program data to quantify local seismic risk. The report should also estimate the scope of work — from basic bolt-and-brace jobs to full foundation replacements.

Costs vary significantly based on home size, crawl space accessibility, and local permit fees. A more detailed breakdown of earthquake retrofitting costs in the Bay Area provides additional context for budgeting.

Common Myths About Earthquake Retrofitting

Misinformation about seismic upgrades leads some homeowners to skip critical work — and others to spend money on upgrades they don't need.

Myth: New Homes Don't Need Any Seismic Work

Homes built after the mid-1990s generally meet modern seismic codes. But "generally" does the heavy lifting in that sentence. Code compliance at the time of construction doesn't guarantee current code compliance. Seismic standards evolve after every major earthquake. A home built in 1998 met 1997 code — not the stricter standards adopted after the 2014 South Napa earthquake. Additionally, renovations, room additions, and garage conversions can compromise original seismic engineering if not done with structural oversight.

Myth: Earthquake Insurance Replaces Retrofitting

Standard homeowner's insurance doesn't cover earthquake damage at all. Separate earthquake policies carry high deductibles — typically 10% to 15% of the home's insured value. On a $1.2 million Bay Area home, that's a $120,000 to $180,000 deductible before coverage kicks in. Retrofitting a home for $5,000 to $10,000 is dramatically cheaper than absorbing that deductible, and it reduces the chance of needing to file a claim in the first place.

Myth: Foundation Bolting Alone Is Always Enough

Foundation bolting addresses one failure point: the connection between the sill plate and the concrete. But if the home has unbraced cripple walls, a soft story, or a deteriorated foundation, bolting alone leaves major vulnerabilities unaddressed. A complete retrofit evaluates the entire lateral load path — from roof to foundation — and strengthens every weak link in that chain.

Warning: Homes with both unbolted foundations and unbraced cripple walls face compounding risk. Fixing only one of the two leaves the structure nearly as vulnerable as fixing neither.

Planning a Retrofit for Long-Term Protection

Earthquake retrofitting isn't a one-and-done checkbox. The smartest approach treats it as part of a broader home maintenance and improvement strategy.

A Phased Approach to Retrofit Work

Budget constraints are real. The good news: retrofit work can be phased. Start with the highest-risk items — typically foundation bolting and cripple wall bracing. These two steps alone reduce collapse risk by an estimated 60% to 80% for raised-foundation homes. Phase two might address soft-story conditions, chimney bracing, or water heater strapping. Phase three could include a full foundation replacement if the existing concrete is severely degraded.

Timing retrofit work alongside other projects saves money. Planning a garage conversion or home addition? That's the ideal time to address seismic deficiencies, since the contractor is already mobilized and permits are already in process.

Cost vs. Value Over Time

Retrofit work delivers value in three ways. First, it directly reduces potential earthquake damage — a $7,000 retrofit can prevent $200,000 or more in structural repairs. Second, it lowers earthquake insurance premiums. The California Earthquake Authority (CEA) offers premium discounts for retrofitted homes. Third, it adds to resale value. Bay Area buyers increasingly ask about seismic upgrades, and a completed retrofit with documentation gives sellers a competitive edge.

The return on investment grows every year the home stands without a major quake — because the cost is fixed, but the potential savings compound with rising home values and repair costs.

When Retrofitting Is Essential — and When It's Not

Does my home need earthquake retrofitting? The answer depends on a handful of concrete factors. Here's how to sort high-priority cases from situations where the money is better spent elsewhere.

High-Priority Properties

• Built before 1980 on a raised foundation with a crawl space
• Has cripple walls (short stud walls) between the foundation and the first floor
• No visible foundation bolts in the crawl space
• Multi-story with tuck-under parking or a large garage opening
• Located within two miles of an active fault trace (Hayward, San Andreas, Calaveras)
• Has an unreinforced masonry foundation or chimney
• Prior additions or remodels done without structural engineering review

Homes matching two or more of these criteria should treat retrofitting as urgent, not optional.

Lower-Risk Situations

Not every home needs immediate work. Slab-on-grade homes (where the concrete foundation is flat on the ground with no crawl space) have an inherently stronger connection to the earth. Homes built after 2000 to California seismic code are generally well-anchored from the start. Single-story homes on flat lots with bolted foundations and no cripple walls sit at the low end of the risk spectrum.

That said, "lower risk" doesn't mean "no risk." Even well-built homes benefit from an inspection every 15 to 20 years, especially after any significant local seismic event. Foundation concrete degrades over decades, and connections can loosen with repeated minor shaking.

Frequently Asked Questions

Final Thoughts

The Bay Area's seismic risk isn't theoretical — it's a matter of when, not if. Homeowners with older raised-foundation homes have the most to gain from a professional retrofit assessment, and the cost of that assessment is trivial compared to the cost of rebuilding after a preventable failure. The smartest next step is scheduling a structural evaluation with a contractor experienced in Bay Area seismic retrofitting, reviewing the findings, and prioritizing the highest-risk items first. Waiting for the next earthquake to decide is the most expensive option of all.
