Rainwater Harvesting Systems for Bay Area ADUs

By Mei Lin

What happens to the thousands of gallons of rain that slide off a Bay Area ADU roof each winter? For most homeowners, that water disappears into storm drains — but a well-designed rainwater harvesting ADU Bay Area system captures it for irrigation, toilet flushing, and even laundry use. The financial and environmental returns are substantial. Paired with a thoughtfully designed accessory dwelling unit, a harvesting system reduces municipal water dependence while satisfying increasingly strict California green building codes. This guide covers system types, costs, common pitfalls, and advanced configurations for ADU projects across the Bay Area.

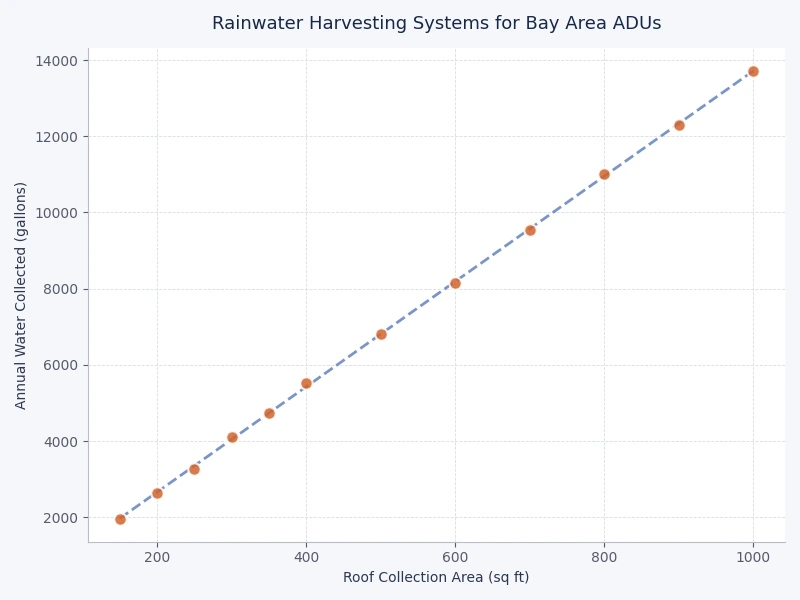

The Bay Area receives an average of 20–25 inches of rainfall annually. A modest 500-square-foot ADU roof can yield over 6,000 gallons per year — enough to offset 30–40 percent of a household's outdoor water usage. With California's ongoing drought cycles and rising utility rates, that yield translates directly into savings and resilience. Homeowners pursuing net-zero ADU construction increasingly view rainwater harvesting as a non-negotiable system rather than an optional upgrade.

Local jurisdictions in Santa Clara, Alameda, and San Mateo counties generally permit rainwater collection for non-potable uses without complex permitting. However, plumbing connections for indoor reuse require backflow prevention and purple-pipe separation under the California Plumbing Code. Understanding these distinctions early prevents costly mid-project redesigns.

Common Problems and How to Solve Them

Overflow and Drainage Conflicts

The most frequent issue with ADU rainwater systems is overflow during atmospheric river events. A 55-gallon rain barrel fills in under 15 minutes during heavy downpours on a 500-square-foot roof. Without a properly sized overflow pipe routed to a pervious area or storm drain connection, water pools against the ADU foundation. This creates moisture intrusion risks that compromise sustainable insulation materials installed in crawlspaces or slab edges.

Overflow solutions include cascading multiple tanks in series, installing a float-valve diverter that redirects excess to landscape swales, or sizing the primary tank to handle a 48-hour storm event. In the Bay Area, that means planning for 2–3 inches of rainfall within a single storm cycle — roughly 600–900 gallons from a 500-square-foot roof.

Water Quality Concerns

Roof runoff carries debris, bird droppings, and dissolved minerals from roofing materials. Asphalt shingles leach more contaminants than metal or tile roofs. First-flush diverters eliminate the dirtiest initial runoff. Mesh screens at gutter entry points stop leaves and large debris. For toilet and laundry reuse, a 5-micron sediment filter paired with UV sterilization meets California health standards.

Pro insight: Metal roofing on ADUs produces the cleanest harvested water and requires the least filtration — a factor worth considering during the design phase rather than retrofitting later.

High-Impact Steps for Immediate Results

The Rain Barrel Starter Kit

Homeowners who want immediate results before committing to a full system can install a basic rain barrel setup in a single afternoon. A 275-gallon IBC tote connected to a single downspout provides enough storage for two weeks of garden irrigation during dry spells. Total material cost runs $150–$300. The key is proper placement: elevate the tote on cinder blocks for gravity-fed pressure, position it within 6 feet of the downspout, and ensure the overflow outlet directs away from the ADU foundation.

Gutter Optimization

Many ADUs use standard 5-inch K-style gutters. For harvesting, oversized 6-inch gutters with leaf guards maximize capture and reduce maintenance. Slope gutters at 1/16-inch per foot toward the collection point. A single poorly sloped gutter section can reduce annual harvest by 15–20 percent due to standing water and overflow at joints. Seamless aluminum gutters eliminate leak points that waste collected water.

Cost and Budget Breakdown

System Tiers Compared

Rainwater harvesting systems for ADUs range from simple gravity-fed barrels to fully plumbed indoor reuse systems. The cost difference is significant. Homeowners should match system complexity to actual water needs and available space.

These costs assume integration during new ADU construction. Retrofitting an existing ADU adds 20–40 percent to material and labor costs due to trenching, wall penetrations, and plumbing modifications. Building the system during initial construction — when trenches are already open and plumbing rough-in is underway — delivers the best economics.

Return on Investment Timeline

Bay Area water rates average $8–$12 per hundred cubic feet (HCF). A mid-range system saving 30 HCF annually generates $240–$360 in direct utility savings. At current rates, a $6,000 underground cistern system pays for itself in 17–25 years through water savings alone. However, factoring in property value increase, GreenPoint Rated certification eligibility, and drought-year resilience shortens the effective payback period considerably. Some Bay Area municipalities also offer rebates of $1–$2 per gallon of installed storage capacity.

Professional Techniques for Better Performance

First-Flush Diverter Sizing

The EPA WaterSense program recommends diverting the first 0.01 inches of rainfall per square foot of roof area. For a 500-square-foot ADU roof, that equals roughly 3 gallons. Standard commercial diverters handle 5–10 gallons, which provides adequate margin. Undersized diverters allow contaminated first-flush water into storage. Oversized diverters waste harvestable clean water.

Mount diverters vertically with a slow-release drain valve at the bottom. The valve should empty the diverter chamber within 24 hours, resetting it before the next rain event. Ball valves with 1/16-inch orifices work reliably in Bay Area temperatures without freezing concerns.

Pump and Pressure Considerations

Gravity-fed systems work for ground-level irrigation but cannot supply indoor fixtures. A 0.5 HP booster pump delivers 30–40 PSI — sufficient for toilets and washing machines. Variable-speed pumps reduce energy consumption by 40 percent compared to fixed-speed models. Install pumps in ventilated enclosures to prevent overheating. A pressure tank (minimum 5-gallon capacity) prevents short-cycling that destroys pump motors.

Warning: Never connect harvested rainwater plumbing to potable water lines without an air-gap separation or approved reduced-pressure backflow preventer — this is a code violation that carries significant fines in every Bay Area jurisdiction.

Starter Systems vs. Full Integration

Passive Collection

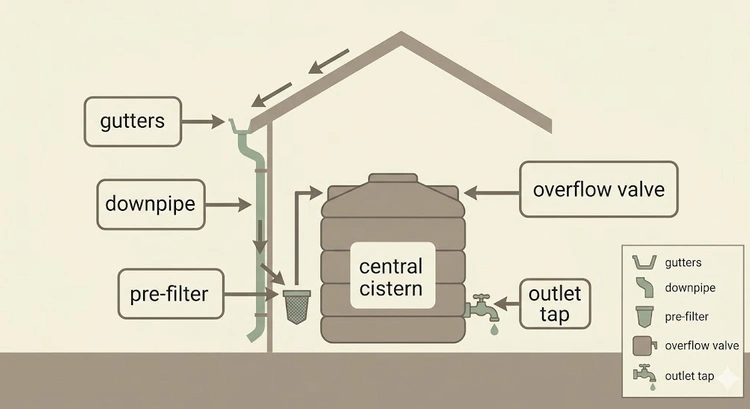

Passive systems rely entirely on gravity. Rain flows from roof to gutter to downspout to storage vessel. No pumps, no electricity, no moving parts beyond a float valve. Maintenance involves cleaning gutters twice yearly and inspecting screens monthly during rainy season. These systems suit ADU owners focused on landscape irrigation. They pair naturally with drought-tolerant landscaping and drip irrigation zones.

The limitation is pressure. Gravity delivers approximately 0.4 PSI per foot of elevation. A tank elevated 4 feet above grade provides only 1.7 PSI — enough for drip emitters but insufficient for sprinkler heads or indoor fixtures. Homeowners should evaluate actual pressure needs before committing to a passive-only design.

Active Indoor Reuse

Full indoor reuse systems require purple-pipe plumbing (per California Plumbing Code Chapter 16), dedicated storage with level indicators, pump and pressure regulation, multi-stage filtration, and monitoring controls. These systems integrate during the ADU rough-plumbing phase. Retrofitting purple pipe into a finished ADU typically requires opening walls and ceilings, which is why planning for indoor reuse during initial design is critical.

Active systems reduce municipal water consumption by 40–60 percent for a typical ADU. Combined with solar panel integration, they form the backbone of a resource-independent dwelling. Properties pursuing passive house design principles in the Bay Area often include rainwater harvesting as part of a holistic sustainability strategy.

Bay Area Installation Examples

Urban Infill Lot in San Jose

A 450-square-foot detached ADU on a 4,000-square-foot urban lot presented space constraints for above-ground storage. The solution: a 1,500-gallon below-grade polyethylene cistern installed beneath the ADU's rear patio during foundation work. The cistern feeds a drip irrigation system serving a 200-square-foot edible garden. Annual water savings: approximately 18 HCF ($150–$215). The system added $4,800 to construction costs but contributed to a GreenPoint Rated score that increased the property's appraised value.

Hillside Property in Oakland

A hillside ADU with a 600-square-foot metal roof benefited from natural elevation change. Two 1,000-gallon slim-profile tanks positioned 12 feet below the roofline provide 5.2 PSI of gravity pressure — enough for toilet flushing without pumps. The slope eliminated trenching costs since supply lines run downhill from tank to ADU. Purple-pipe plumbing was included in the original design. Total system cost: $9,200. Estimated annual municipal water offset: 35 HCF.

• Metal roof eliminated the need for first-flush diverters (minimal contamination)
• Gravity pressure sufficient for two toilets and one washing machine
• Overflow routes to an existing bio-retention swale on the downhill slope
• System qualifies for East Bay Municipal Utility District rebate ($500)

Frequently Asked Questions

Every gallon captured from the sky is a gallon that never appears on the water bill — and in the Bay Area, those gallons compound into thousands of dollars and genuine drought resilience over the life of an ADU.
