Solar Panel Integration When Building an ADU in San Jose

By Mei Lin

Can you power a brand-new ADU entirely from rooftop solar in San Jose? Yes — and the real question is why you'd build one without it. Solar panels ADU San Jose permit applications are stacking up fast across Willow Glen, Blossom Valley, and East San Jose. PG&E's time-of-use rates keep climbing. California's energy code already nudges new construction toward greater efficiency. A solar-integrated ADU isn't just greener — it rents higher, appraises better, and costs less to operate every single month. If you're building with 9Builders, solar belongs in the conversation from day one — not as a last-minute add-on, but as a core design decision.

This guide walks you through the long-term financial case, the step-by-step integration process, the mistakes that cost owners real money, the honest tradeoffs, and what to do when things go sideways after installation.

Why Solar Is a Long-Term Win for Your ADU

The Financial Case

PG&E's E-ELEC time-of-use rates have increased significantly over the past decade, and there's no structural reason to expect that trend to reverse. When you add solar at build time, you're locking in your energy cost now. Think of it as prepaying decades of electricity at a fixed rate, minus the compounding increases you'd otherwise absorb year after year.

A typical one-bedroom ADU in San Jose draws roughly 6–8 kWh per day. A 3–4 kW rooftop system offsets most of that load during daylight hours. Under NEM 3.0, the economics shifted significantly — export compensation dropped about 75% compared to NEM 2.0. That changes the optimal strategy. Self-consumption is where the value lives now, not grid export. Size your system to cover your ADU's actual usage, not to push excess into the grid at low rates.

Your ADU is an income-generating asset. A solar-powered unit lets you market lower utility costs to prospective tenants — or absorb the bill and bake it into the rent. Either approach strengthens your rental position. Our guide on designing ADU floor plans for maximum rental income covers the layout decisions that compound this advantage further.

Property Value Impact

Lawrence Berkeley National Laboratory research consistently shows California solar systems adding $3–4 per watt of installed capacity to home value. On a 4 kW system, that's $12,000–$16,000 in added value. Your ADU doesn't have a separately assessed value from the main parcel in most cases, but appraisers factor in rental income potential and energy performance when evaluating the full property. The well-documented impact of improvements on Bay Area property value is especially strong when a solar system is visible, modern, and warrantied.

Solar added during construction costs 20–30% less than a retrofit after the fact. The conduit runs, roof penetrations, and electrical panel upgrades are already open — that window closes the moment your ADU is dried in.

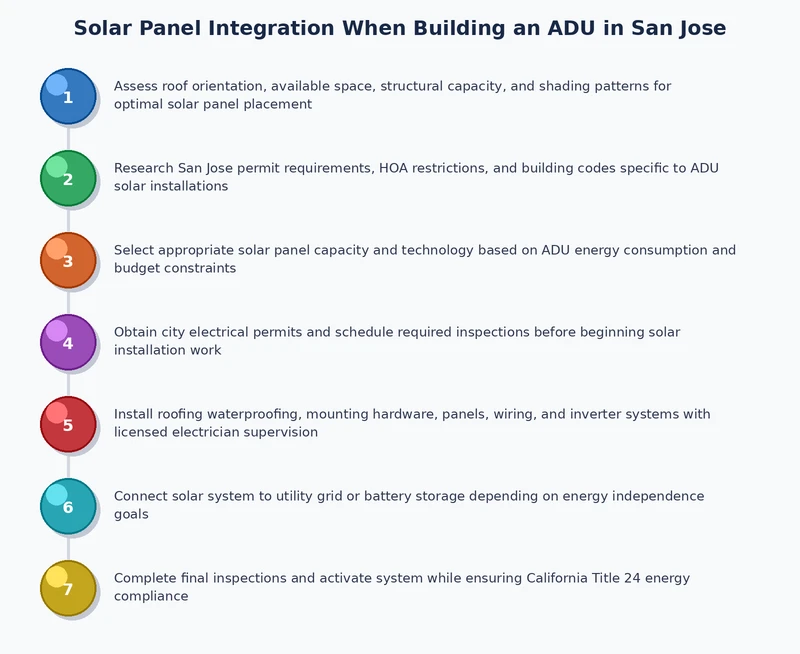

How to Integrate Solar Panels for Your ADU in San Jose, Step by Step

Design Phase Decisions

Start with roof orientation. South-facing planes at 15–25° pitch maximize annual output at San Jose's latitude (37°N). West-facing slopes are a solid second choice — they shift peak production into PG&E's peak TOU window (4–9 PM), which carries value under NEM 3.0's export rate structure. Flat roofs accept adjustable ballasted racking with no structural modification required.

Decide on battery storage early. A 10–13.5 kWh AC-coupled battery — Enphase IQ5P, Tesla Powerwall 3, or Franklin WH — pairs well with a small ADU system. Batteries buffer NEM 3.0's low export credits and provide backup during the grid outages that have grown more common across the South Bay. This is also the right phase to coordinate your insulation spec, window glazing, and HVAC sizing — a tighter building envelope means you can right-size the PV system downward without sacrificing comfort. Our overview of eco-friendly building materials for Bay Area homes is a good reference for envelope decisions that interact with solar load calculations.

Permit Coordination in San Jose

San Jose Building Division processes solar permits through the ePlans portal. For new ADU construction, include the solar system in the original permit set — not as a separate application filed later. One plan set, one review cycle. Your contractor submits structural, electrical, and PV layout drawings together. This is cleaner and typically faster than pulling a standalone solar permit after the ADU certificate of occupancy is issued.

CALGreen compliance and Title 24 energy requirements apply to all new ADUs in San Jose. A properly sized PV array can offset other prescriptive compliance requirements in the Title 24 energy calculations — work with an energy consultant who knows how San Jose's plan checkers interpret the compliance worksheets. Before finalizing your design, also confirm your siting against ADU setback requirements in the Bay Area — rear yard constraints can limit where a detached unit sits and, by extension, which direction its roof faces. If an HOA has jurisdiction over your property, check HOA approval requirements for ADUs early; California's Solar Rights Act limits an HOA's ability to block solar outright, but aesthetic conditions can add review cycles.

System Sizing Reference

Don't let a contractor undersize the system to lower the bid price. A 2.5 kW array on a 700 sq ft ADU with a mini-split sounds plausible on paper — but it leaves you fully grid-dependent every evening at peak rates.

Solar Mistakes ADU Owners Regret

Ignoring the Roof in the Design Phase

Treating solar as a finish item is the most common and most costly mistake. By the time your roof is framed, sheathed, and dried in, the orientation and pitch are fixed. If those decisions weren't made with a PV array in mind, you're stuck with a compromised layout for the life of the system. East-facing slopes, excessive penetrations from HVAC equipment, or shading from an adjacent two-story structure can cut annual output by 20–40%.

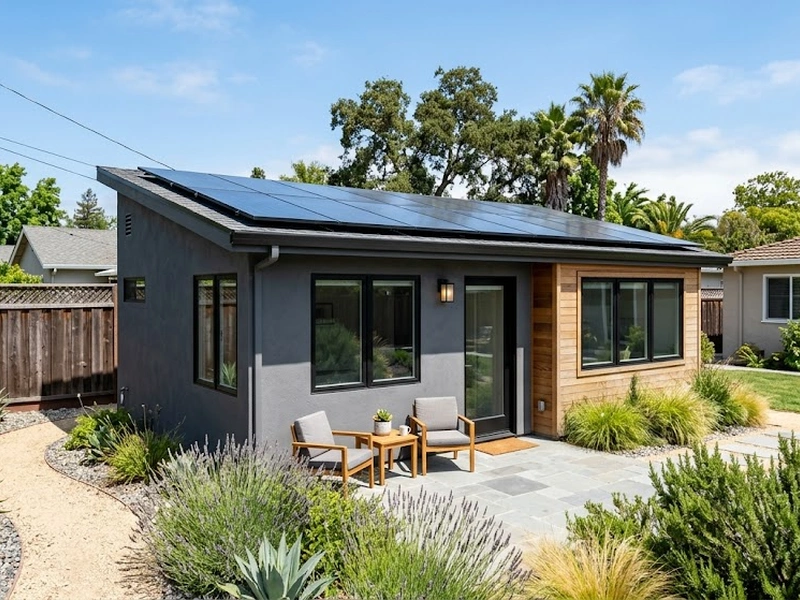

Detached ADUs give you the most flexibility. The roof is fully independent of the main house, so you control the ridge orientation entirely. Raise this with your designer before any structural drawings are finalized. It costs nothing at the design stage and makes a compounding difference over a 25-year system lifespan. The green building requirements for Bay Area new construction also reward passive solar orientation decisions that naturally dovetail with PV placement.

Misreading NEM 3.0

NEM 3.0 took effect for new interconnection applications in April 2023. Export compensation dropped roughly 75% from NEM 2.0 levels. That doesn't kill solar economics for ADU owners — it reshapes them. Under NEM 2.0, oversizing and exporting excess power was financially smart. Under NEM 3.0, self-consumption drives the returns. Right-size your system to your actual load profile. Add a battery if your rate structure supports the added cost. Don't let a solar company quote a 6 kW system for a 450 sq ft studio — that oversizing won't pay back under current export rates.

Weighing the Solar Tradeoffs

What Works in Your Favor

San Jose gets over 260 sunny days per year. That's a meaningful production advantage over the coastal fog belt, and it means your system consistently produces close to its rated annual output. The federal Investment Tax Credit covers 30% of installed costs through 2032 — on a $15,000 system, that's $4,500 back on your federal return. California's property tax exclusion applies to solar equipment, so the value it adds to your home isn't taxed back at assessment time.

Financing solar through your ADU construction loan is often the most efficient path. You're borrowing at construction-to-perm rates rather than higher solar-specific financing products. Our overview of home addition and ADU financing options in the Bay Area covers the construction-to-perm loan structures that absorb solar costs cleanly alongside the ADU build budget.

What to Watch Out For

Solar adds permit complexity and typically 8–12% to your ADU construction budget at current installed prices. PG&E's interconnection queue can add 4–12 weeks to your timeline after inspection. If you sell the property within five to seven years of installation, you may not fully recapture the upfront investment — though the property value premium and ITC offset much of that risk. The U.S. Department of Energy's homeowner guide to the federal solar tax credit lays out exactly which costs qualify and how to claim the credit correctly.

If your ADU tenant uses most of their electricity at night, rooftop solar alone won't reduce their bill much. Pair the system with a battery or structure the lease so utilities remain the owner's responsibility.

When Solar Doesn't Go As Planned

PTO Delays from PG&E

Permission to Operate (PTO) is PG&E's final authorization to activate your solar system. Their interconnection queue has historically run 4–12 weeks after the building inspection sign-off. Your ADU is fully occupiable before PTO is granted — tenants can move in, appliances run on grid power as normal — but the solar system must stay physically off until PG&E issues the PTO letter. Build a buffer into your lease start date. Don't promise a tenant "solar from move-in" unless you have PTO documentation in hand.

Shading and Output Gaps

If post-installation shading from a neighbor's new addition, a maturing tree, or a rooftop HVAC condenser is cutting into your production, your options after installation are expensive. Microinverters or DC optimizers — Enphase IQ8 series or SolarEdge power optimizers — handle partial shading far better than traditional string inverters. Specify module-level power electronics at the design stage for any roof with foreseeable shading risk. A professional shading analysis during design runs a few hundred dollars. Repositioning a mounted and wired array costs several thousand. The math on prevention is obvious.
