Sunnyvale ADU Requirements: Permits, Setbacks and Fees

By Raven Vuong

Planning an accessory dwelling unit on your Sunnyvale property means navigating a specific set of local rules that build on California state law. Understanding Sunnyvale ADU requirements before you break ground saves months of back-and-forth with the city and prevents costly redesigns. Sunnyvale's standards cover unit size, setbacks, height limits, parking, design compatibility, and a detailed fee schedule — all of which directly affect your budget and timeline. Whether you are adding a detached cottage, converting a garage, or carving out a junior unit inside your home, this guide walks you through every key requirement. Our team at 9Builders ADU builders has helped dozens of South Bay homeowners get their permits approved efficiently, and the details below reflect what we see in the field every day.

Sunnyvale sits in Santa Clara County and processes ADU applications through its Community Development Department. The city embraced California's ADU reform laws and streamlined its own ordinance to encourage more housing. Still, local standards add layers that state law alone does not cover. If you have already read our Oakland ADU permit requirements guide or our Fremont ADU permit guide, you will notice both similarities and meaningful differences with Sunnyvale's approach.

ADU Types Allowed in Sunnyvale

Sunnyvale permits several ADU configurations on single-family and multifamily lots. Each type carries its own size limits, setback rules, and permit pathway. Choosing the right type early shapes your entire project scope.

Detached ADUs

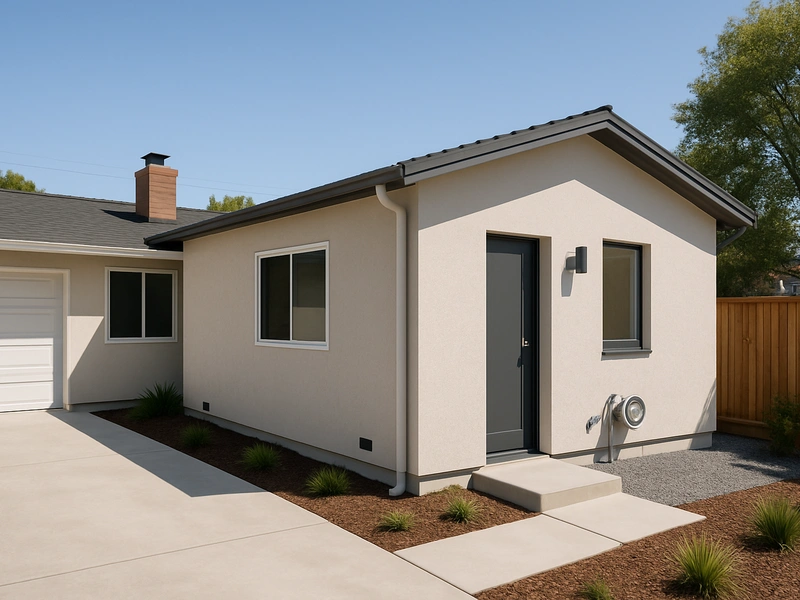

A detached ADU is a separate structure on the same lot as the primary residence. It can be new construction or a converted existing structure such as a detached garage or workshop. Detached units offer the most design flexibility and are popular for rental income because they provide complete privacy from the main house.

Attached and Garage Conversion ADUs

An attached ADU shares at least one wall with the primary dwelling. Garage conversions — both attached and detached — qualify as ADUs and benefit from a simplified permit pathway under state law. Sunnyvale cannot deny a permit for a garage conversion solely because it reduces required parking spaces, a protection built into California ADU law.

Junior ADUs (JADUs)

A Junior ADU is created entirely within the walls of the existing primary structure, including an attached garage. JADUs are capped at 500 square feet and must include an efficiency kitchen. They require a separate exterior entrance but may share a bathroom with the main home. For a detailed breakdown of JADU rules across the Bay Area, see our Junior ADU guide.

Size, Height, and Lot Coverage

Sunnyvale ADU requirements set clear maximums that determine how large your unit can be. The table below summarizes the key dimensional standards.

Lot coverage limits still apply. Sunnyvale's R-0 and R-1 zones typically cap total impervious and structural coverage at 40–50% of lot area. Your ADU plus the primary home and any other structures must stay within that combined ceiling. A site survey helps confirm available envelope before design begins.

Setback Requirements

Setbacks define how close a structure can be to property lines. Sunnyvale ADU requirements distinguish between new construction and conversions of existing structures.

Standard Setbacks

Detached ADUs must maintain a minimum 4-foot setback from the rear and interior side property lines. Front yard setbacks follow the standard zone requirements for the primary dwelling — typically 15 to 20 feet in R-1 zones — and ADUs generally cannot be placed in the front yard. Corner lots have an additional street-side setback that mirrors the interior side setback requirement for the primary home.

Attached ADUs must comply with the same setbacks as the primary structure for the side where expansion occurs. If you are expanding sideways into a side yard, you cannot intrude into the required side setback unless you qualify for a variance, which is rare in standard ADU cases.

Fire Safety Considerations

Structures placed within 3 feet of a property line must use one-hour fire-rated exterior wall construction per California Building Code. If your detached ADU sits at the minimum 4-foot setback, this requirement does not trigger automatically, but your architect should still detail the wall assembly clearly in permit drawings. Sunnyvale plan checkers scrutinize this closely.

Permit Process and Fees

Application Steps

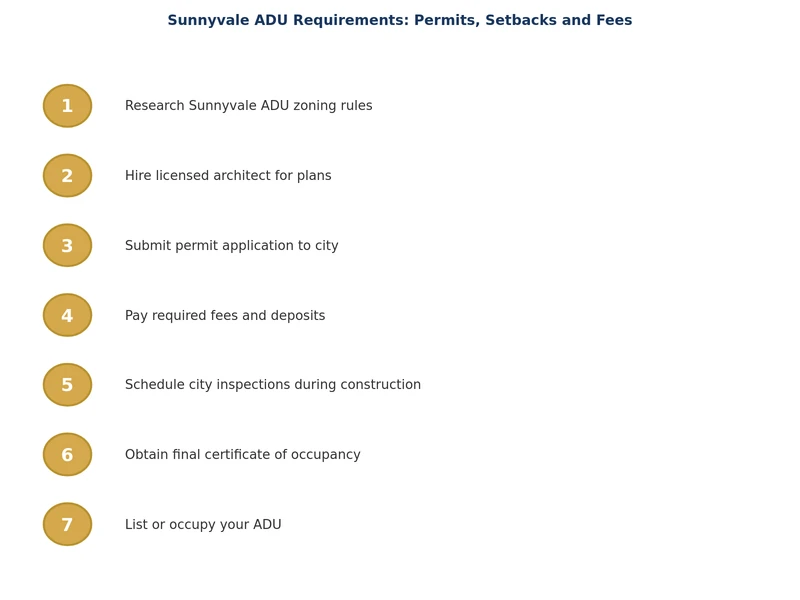

Sunnyvale processes ADU permits through its Permit Center. The general sequence is:

1. Pre-application review — optional but recommended for complex projects; staff will flag zoning issues early.
2. Submit building permit application — include site plan, floor plans, elevations, structural calculations, and Title 24 energy compliance documents.
3. Planning review — staff checks zoning compliance, setbacks, height, and design standards. Standard ADUs on residential lots are ministerially approved (no discretionary hearing).
4. Building plan check — structural, energy, and accessibility review. First review typically takes 2–4 weeks for over-the-counter or electronic submittals.
5. Permit issuance — pay fees, pull permit, begin construction.
6. Inspections — foundation, framing, rough MEP, insulation, and final inspections required.
7. Certificate of Occupancy — issued after final inspection passes.

Fee Schedule

Sunnyvale ADU fees depend on construction valuation and unit type. Below are representative ranges based on recent projects. Exact fees are calculated at permit issuance and can change with city fee schedule updates.

California's SB 13 prohibits impact fees — other than connection fees — for ADUs under 750 square feet. For larger units, impact fees are charged proportionally based on the ratio of the ADU's size to the primary dwelling. This is a significant cost protection for most homeowners building a standard-sized unit.

Design and Development Standards

Beyond raw dimensions, Sunnyvale ADU requirements include design compatibility rules intended to keep new units visually cohesive with existing neighborhoods.

Exterior Design

Detached ADUs must use exterior materials, colors, and roof pitches that are compatible with the primary dwelling. This does not mean identical — contemporary interpretations are acceptable — but jarring contrasts in material type or palette will trigger planning comments. Windows facing neighboring properties may be subject to privacy requirements, such as translucent glazing or minimum sill heights, if they overlook adjacent yards.

Parking

Sunnyvale generally requires one replacement parking space if an existing garage is converted. However, this requirement is waived when the property is located within half a mile of a public transit stop, or when the ADU is in a historic district, or when the conversion is within the primary structure. Most Sunnyvale lots near El Camino Real or Caltrain stations qualify for the transit waiver, which significantly eases garage conversion projects.

Utilities and Energy

New detached ADUs typically require a separate utility connection for water and sewer lateral. Sunnyvale Water utility may require a capacity analysis for properties on older mains. All new ADUs must meet current California Title 24 energy standards, which means spray foam or high-density batt insulation, dual-pane windows, and a heat pump HVAC system in most cases. Solar PV is required on new detached ADUs per California's Building Energy Efficiency Standards unless shading or roof area makes installation infeasible.

Owner-Occupancy

State law removed the owner-occupancy requirement for standard ADUs through 2025 legislation. Sunnyvale cannot currently require that an owner live on the property to rent out an ADU. JADUs retain the owner-occupancy requirement — you must live in either the primary residence or the JADU if you rent the other unit.

Start Your Sunnyvale ADU Project

Meeting all Sunnyvale ADU requirements demands careful coordination between your architect, structural engineer, and permit expediter. The most common delays stem from incomplete Title 24 packages, missed fire-rating details at property line walls, and utility capacity issues discovered late in plan check. Starting with a thorough feasibility study — confirming your lot's size envelope, setback compliance, and utility capacity — prevents the bulk of those problems.

Our team at 9Builders manages the full process: site analysis, design, permitting, construction, and final inspections. We have built ADUs across Sunnyvale, Cupertino, Santa Clara, and the broader South Bay, and we know what Sunnyvale plan checkers look for on first submittal. Reach out for a free site consultation and permit feasibility review.
