How to Design an ADU Floor Plan for Maximum Rental Income

By Raven Vuong

A well-designed ADU floor plan rental income strategy starts before a single permit is filed. Bay Area homeowners who optimize space, function, and tenant appeal consistently command higher rents and faster lease-up times. Whether you're planning a detached backyard cottage or a garage conversion, the layout decisions you make early determine long-term cash flow. Our team at 9Builders has helped hundreds of Bay Area homeowners design ADUs that perform as true income properties — and the difference almost always comes down to thoughtful floor planning.

This guide walks through the principles, configurations, and features that separate high-performing ADU rentals from underperforming ones. If you're still evaluating your options, our Junior ADU guide is a good starting point for smaller, lower-cost units.

Why Floor Plan Design Drives Rental Income

Rental income from an ADU is not simply a function of square footage. A 500 sq ft unit with a smart ADU floor plan rental income layout can out-earn a poorly designed 700 sq ft unit. Tenants pay for livability — the sense that a space works for daily life — not raw size. According to the U.S. Census Bureau, smaller housing units with efficient layouts consistently achieve higher per-square-foot rents in dense metro areas.

In the Bay Area, where renters are accustomed to tight spaces and high standards, layout quality is a direct rent lever. A unit that feels spacious, has adequate storage, and functions as a complete home commands a meaningful premium over one that feels cramped or awkward.

Key Layout Principles for ADU Floor Plans

Open vs. Defined Spaces

Open floor plans work well in studios and one-bedroom ADUs under 600 sq ft. Combining the kitchen, dining, and living areas into a single flowing zone makes smaller footprints feel larger. However, completely open plans can feel unfinished. Use a kitchen island, a partial wall, or a change in flooring material to define zones without closing off space. For two-bedroom units, defined bedrooms with solid walls are non-negotiable — renters sharing a two-bedroom expect privacy.

Natural Light and Ventilation

Bay Area tenants pay attention to light. South- and west-facing windows maximize passive solar gain and perceived warmth. Skylights are particularly valuable in single-story ADUs where lot setbacks limit window placement — see our guide on skylight installation costs if you're evaluating this option. Cross-ventilation through opposing windows reduces the need for mechanical cooling, lowering utility costs for tenants and improving unit appeal.

Size and Configuration Options

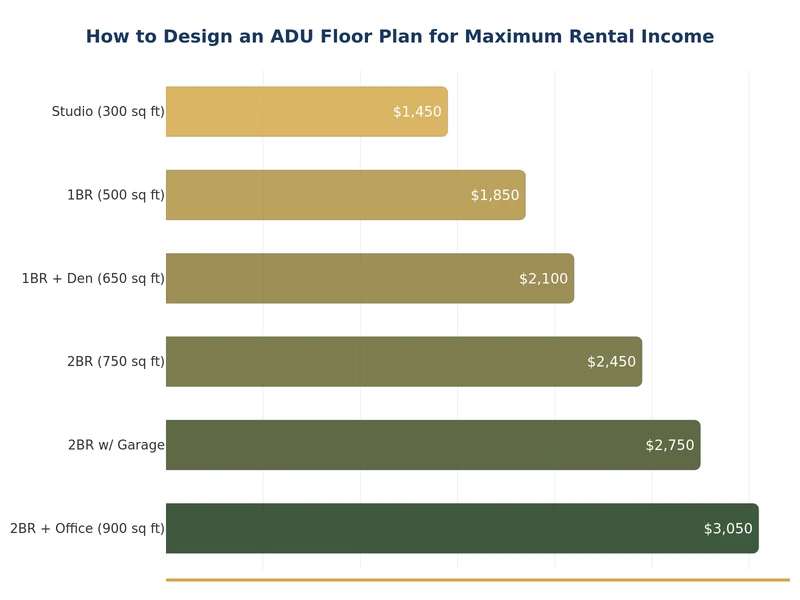

Choosing the right size and bedroom count is the single most important ADU floor plan decision for rental income optimization. The table below shows typical Bay Area rental ranges by configuration.

For most Bay Area properties, a one-bedroom ADU between 550 and 700 sq ft delivers the best balance of construction cost and rental return. The incremental cost to add a second bedroom is often justified when lot size and setback requirements allow a larger footprint.

Bathroom Configuration

A full bath — tub or shower, toilet, and vanity — is the minimum. Two-bedroom units with only one bathroom are harder to rent to roommates. If your budget allows, a second bathroom (even a three-quarter bath) in a two-bedroom unit significantly expands your tenant pool and supports higher rent. Keep bathrooms adjacent to bedrooms to minimize plumbing run lengths and cost.

Kitchen Size and Placement

A functional kitchen matters more than a large one. Renters expect a full-size range, refrigerator, and adequate counter space. L-shaped or galley layouts work well in compact ADUs. Position the kitchen along an exterior wall to simplify hood venting. An island with bar seating doubles as dining space in open-plan units, eliminating the need for a separate dining area.

Features That Command Higher Rent

Beyond layout, specific features consistently justify rent premiums in the Bay Area market. Prioritize these when allocating your construction budget.

In-Unit Laundry

A stacked washer/dryer in a closet is the single highest-impact amenity for Bay Area renters. Units with in-unit laundry rent faster and for more money than identical units without it. Plan a 30-inch-wide closet with a 240V outlet and drain access. The cost is modest — a dedicated laundry space adds minimal square footage but meaningfully increases rent potential.

Private Outdoor Space

A small private patio or deck attached to the ADU, distinct from the main house yard, commands a significant premium. Even 80–100 sq ft of exclusive outdoor space signals a complete, independent home rather than a converted structure. Use fencing or landscaping to delineate the space clearly.

Storage

Renters in smaller units need more storage than the unit's square footage suggests. Plan at least one walk-in or large reach-in closet per bedroom, plus a linen closet or pantry. Under-stair storage, built-in cabinetry, and a small exterior storage shed all reduce tenant frustration and vacancy rates.

Energy Efficiency

Low utility bills are a marketing advantage. Insulation, dual-pane windows, a mini-split HVAC system, and an on-demand water heater all reduce monthly operating costs for tenants. In California, all-electric ADUs also position you well for future electrification mandates.

Common Design Mistakes to Avoid

Wasted Circulation Space

Long hallways and oversized entryways consume square footage without adding livability. In an ADU floor plan for rental income, every square foot should serve a primary function. Route traffic through living areas where possible, and keep hallways under 4 feet wide.

Bedroom Placement Next to Noisy Areas

Placing bedrooms adjacent to the main house, a shared driveway, or mechanical equipment creates noise complaints and tenant turnover. Buffer bedrooms with closets, bathrooms, or living areas. Site the sleeping areas toward the quietest side of the lot.

Undersized Windows

Building departments require egress windows in sleeping rooms, but many builders minimize glazing to reduce cost. Larger windows increase natural light dramatically and justify higher rents. The additional material cost is small relative to the rental return over time.

Ignoring Separation From the Main House

Tenants value privacy and a sense of independence. Avoid designs where ADU windows face directly into the main house living areas, or where the ADU entrance requires walking past primary bedroom windows. Visual and acoustic separation makes your ADU more attractive to long-term renters.

Working With an ADU Builder

An experienced ADU builder does more than construct — they guide layout decisions based on local zoning, permit history, and real-world rental performance. In the Bay Area, city-specific rules around setbacks, height limits, and lot coverage directly constrain what floor plans are feasible. A builder with local permit experience catches these constraints before you invest in detailed design.

When evaluating builders, ask to see completed ADU floor plans and actual rent data from finished projects. Ask about their approach to utility connections, separate metering, and fire separation requirements — all of which affect design and cost. The right partner helps you balance your rental income goals with practical construction constraints from day one.

Designing for maximum ADU floor plan rental income is as much about discipline as creativity — eliminating waste, prioritizing the right amenities, and planning for the tenant experience from the first sketch forward.
